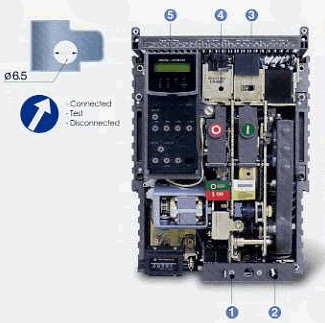

Air Circuit Breakers : Auxiliary devices

1:Pad lock(PL)

To fix a ACB into a position (Dis-connected, Test, Connected)
* Standard offer in the draw-out type

2:Position Indicator

To indicate the position (Dis-connected, Test, Connected)of a ACB
* Standard offer in the draw-out type

3:Closing Coil(CC)

• To close the breaker by remote control
• The coil only operates when the power is supplied continuously over 100ms
• Power should be supplied separately from the moer charging power.
• Electric pumping prevent circuit is built in it.

Rated voltage(V)		Operational voltage (V)	Inrush current peak value(A)	Steady current(A)	Closing time(sec)
AC/DC 50/60Hz	110	94-121	2	1	0.08 Under
	220	187-242	3	1.3
DC	125	106-138	2.3	1
	24	21-26V	30	3.5
	48	41-53V	30	7

Note

*1

Closing time is from coil excitation to contact closing

*2

Steady current is the value at maximum rated voltage

*3

Please be careful that the pumping prevention circuit is reset when its voltage is under 85% of the rated voltage

*4

The extent of operation voltage is 85-110% of the rated voltage

4:Shunt coil(SHT)

• To open the breaker by remote control
• Use an auxiliary contact(INO) to prevent coil burnig
• When the control power is 'OFF' at the ACB is 'ON' state, the ACB remains 'ON'

Rated voltage(V)		Operational voltage (V)	Inrush current peak value(A)	Steady current(A)	Closing time(sec)
AC/DC 50/60Hz	110	77-121	2	1	0.04 Under
	220	154-242	3	1.3
DC	125	88-138	2.3	1
	24	21-26V	30	3.5
	48	41-53V	30	7

Note

*

The extent of operation voltage is 70-110% of the rated voltage.

• To Page Top

5:OCR Alarm contact

• OCR alarm contact is fundamentally installed in only ACB with trip relay.
  When the ACB is tripped by the OCR operation, electrical signal flows through the OCR alarm contact for remote supervisory(INO).

Contact type

TYPE	OCR-II	OCR-III
Operational type	Momentary operation type (Under 15ms)	Magnetic maintenance type
Formation of contact	2NO	2NO

Operating condition of contact

Condition of circuit breaker	Cause of trip	Condition of "a" contact
TRIP	Long-time delay trip, Short-time delay trip, Instantaneous-time delay trip, Ground fault trip	ON
	Trip button, Shunt trip coil (SHT), Undervoltage trip (UVT)	OFF
ON		OFF
OFF		OFF

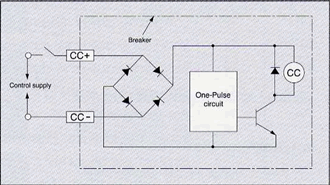

Pumping prevent circuit

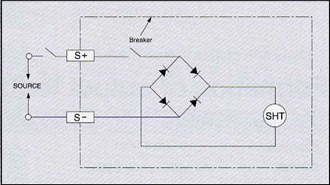

Trip coil circuit

Contact capacity

TYPE		Capacity
Ratings	AC	250V 5A
	DC	30V 5A
Rated current		5A
Maximum contact voltage	AC	380V
	DC	125V
Maximum contact current		5A
Minimum applicable load	DC	5V 10mA
