Industrial Controller : MICRO-EHV+ Series : Dimensions

[Unit : mm]

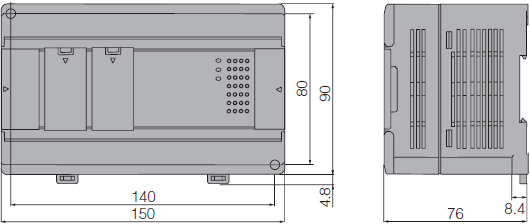

40 points type basic unit

40 points type basic unit

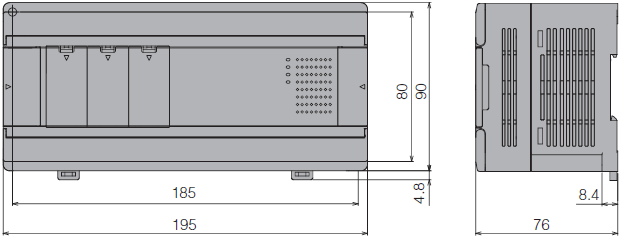

64 points type basic/expansion unit

64 points type basic/expansion unit

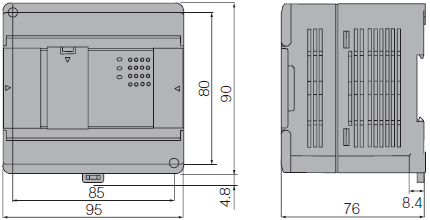

8/14/16/analog/RTD/TC expansion unit

8/14/16/analog/RTD/TC expansion unit

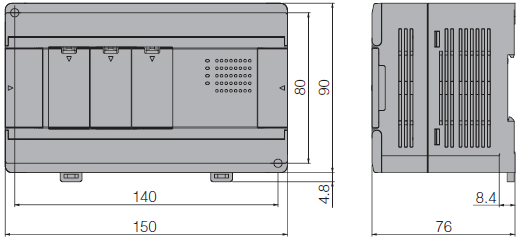

28 points expansion unit

28 points expansion unit
