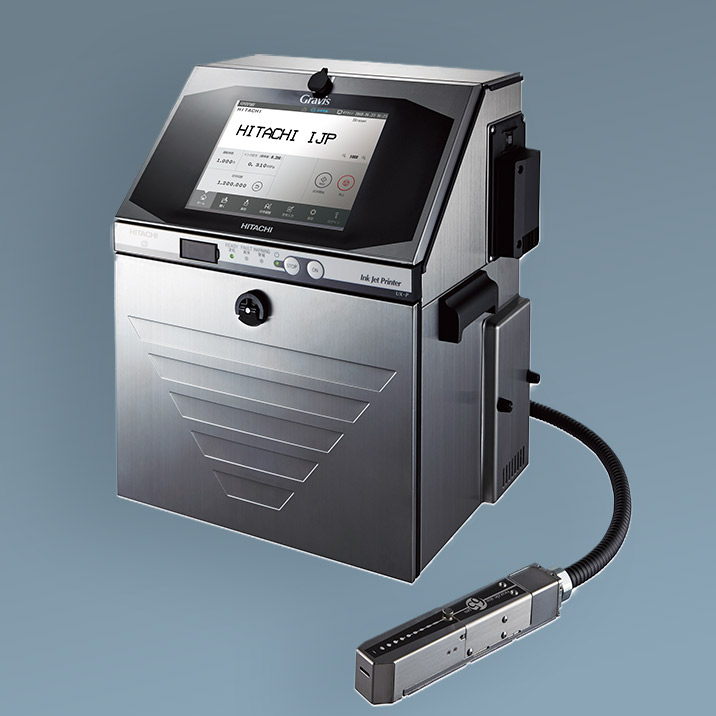

Marking SystemGravis UX Series
[Pigmented ink model]

Realizing a high contrast on dark colored materials

Index

Application Examples

Beverage cans

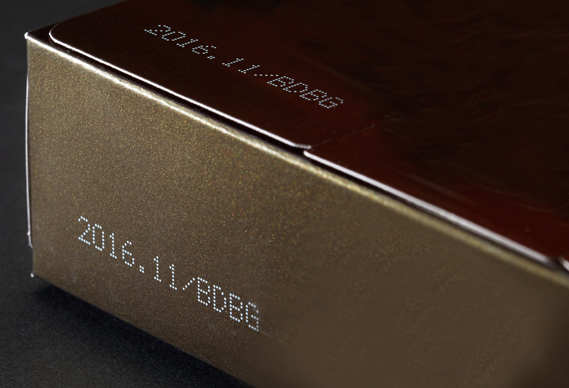

Boxes
Shampoo bottles
Steel plates
PET bottles
Tubes/Cables

Features

The ink recovery control and device temperature control provided by the new technology “Makeup fluid consumption reduction system” significantly suppresses the amount of solvent volatilized. The amount of makeup fluid consumed of the pigmented ink model has been reduced by up to approximately 20%*1. It contributes to reduced running cost and improved environmental performance.

  1. Comparison with our former model PXR-P. Data obtained under in-house measurement conditions for JP-W89 ink at 20°C

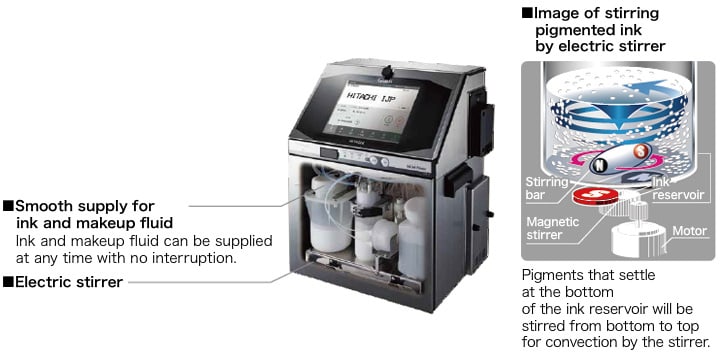

The electric stirrer prevents the agglomeration and the settling peculiar to pigmented ink to prevent nozzle and filter clogging. In addition, the UX Series pigmented ink model is equipped with “Ink circulation control,” which allows the ink to circulate even in a standby mode to prevent ink fixing, realizing smooth operation on production lines.

Specification

Specification UX-P661J
Nozzle size Nominal 65μm
Number of printheads 1
Printhead direction All directions
Maximum number of print lines 6
Numbers of print lines and print characters 1 line 1,000 characters x 1 line
2 lines 500 characters x 2 lines
3 lines 333 characters x 3 lines
4 lines 250 characters x 4 lines
5 lines 200 characters x 5 lines
6 lines 166 characters x 6 lines
Font size, number of lines (horizontal x vertical) (Maximum number of vertical dots: 48) 4 x 5 1-6 lines
5 x 5 1-6 lines
5 x 8 or 5 x 7 1-4 lines
9 x 8 or 9 x 7 1-4 lines
7 x 10 1-3 lines
10 x 12 1-2 lines
12 x 16 1-2 lines
18 x 24 1 line
24 x 32 1 line
30 x 40 1 line
36 x 48 1 line
Maximum character height
(Depends on print distance, print speed and operating temperature) 		Approx. 10 mm
Input device & display Input device: Touch panel (input sound provided)
Display: 10.4” color LCD with backlight
Maximum print rate
(For 5 x 5 with 1-dot space between characters) 		2,083 characters per second (Ink JP-W89)
Printable character types Standard characters
  • Alphanumeric (A-Z, 0-9), katakana (18 x 24, 12 x 16, 7 x 10, 5 x 8), general symbols (27 types), spaces: 171 types in total
  • Dedicated date characters: 25 in total (7 x 10 and 5 x 8)
  • Kanji (JIS Types 1 and 2: 18 x 24, 12 x 16, 11 x 11)
  • Half-width characters: 7 types in total, including general symbols and spaces
User patterns 200 characters for each dot matrix (50 characters for 30 x 40 and 36 x 48)
Barcode printing
2D code		 code39, ITF, NW-7, JAN-8, code128 (EAN128), UPC-A, UPC-E, DataMatrix code (49 alphabetic characters, 98 numeric characters), QR code (61 alphabetic characters, 101 numeric characters), Micro QR Code (11 alphabetic characters, 18 numeric characters), GS-1 data bar, DotCode
Printing-related settings Print content, character height, character width, character posture, starting position, continuous printing interval, continuous printing count, number of print lines, dot matrix, space between characters, horizontal character scaling (2-9 times), space between lines (not for 1-line printing), numbering
Automatic date update 99 types with year, month, date, hour, minute, second, week number, day of the week printing function and substitution function
Data storage capacity Up to 2,000 items of combinations of print content and format
(depends on data content)
Work shift code printing Available
Time-count printing Available
Input and output signals Input Start printing (ancillary functions: Sensor filter, Sensor out, Tracking), Stop printing, Speed following pulse, Remote control (Run, Stop, Deflection voltage ON/OFF, Reset), Reciprocating printing
Output Print ready, Fault, Warning (relay output, non-contact output), Print in progress or Print complete, Online output (non-contact output)
Ink and makeup fluid management Automatic concentration adjustment function (with monitor), with warning output for ink and makeup fluid levels, with ink life warning
Auxiliary functions for operation Operational status display (indicator lamp, messages), operation guidance (guidance for occurrence of fault or warning), password function (input restriction function), editing of other data during printing
Auxiliary functions for maintenance Operation time management display (cumulative time, ink cartridge replacement time, filter usage time), circulation control function (ink replenishment, ink circulation, etc.), line monitor (communication data confirmation, error location display), automatic cleaning function (automatic cleaning of nozzles and gutters with makeup fluid at the end of the day), confirmation of operation history, etc.
External communication function (serial communication) Functions Print content transmission (conforming to ASCII code), data recall transmission, user pattern transmission, printing conditions transmission, remote operation transmission, clock initialization transmission, print data registration transmission
Specification Serial interface: RS-232C (115,200 bps max.), half-duplex communication, start-stop synchronization
Ethernet communication* (100BASE-T) Functions Modbus communication, EtherNet/IP communication, OPC-UA communication
  • Please contact us for details on communication specifications.
Other functions Speed following function, frequency division function
Printhead cable (connecting pipe):
length, angle 		4 m, 0°/90°
Operating temperature and humidity 0-40°C (ink JP-W89), 30-90%RH
Operating atmosphere No corrosive gases
Protective structure IP65
Power supply AC100-120/200-240 V ±10%, 50/60 Hz
Dimensions/Weight/Exterior 400 x 320 x 527 mm (W x D x H)/Approx. 27 kg/Stainless steel hairline finish

Optional features

Optional software features

  • Integration with print verification system (Gravis MC-20S)
  • Barcode reader connection function
  • Special communication and external signal functions

Optional hardware

  • Some models are not compatible with optional features. Please contact us for more information.

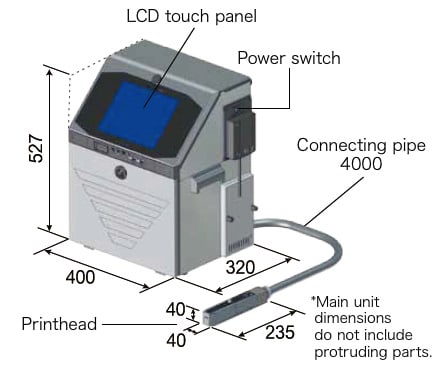

Dimensions

(Unit: mm)
