Overview
The EHV+ Series is a fully IEC61131-3 compliant PLC Series which offers effective programming features and reduced debugging and commissioning time.
Features
CPU module "EHV+"
EHV+ CPU module
No. of I/O is Max. 4,224 (using 64 pts. modules)
EHV+ Series is small size but powerful PLC covering wide range of applications since it is possible to expand up to 5 expansion bases, which offers max. 4,224 I/O points in 66 I/O modules.
DC and AC digital input and output modules
8 / 16 pts. Input module (terminal block)
EH-XD8 : 8 pts. 24V DC (Input lag 5ms max.)
EH-XD16 : 16 pts. 24V DC (Input lag 5ms max.)
EH-XDL16 : 16 pts. 24V DC (Input lag 16ms max.)
EH-XDS16 : 16 pts. 24V DC (Input lag 1ms max.)
EH-XA16 : 16 pts. 100 to 120V AC (Input lag 15ms max.)
EH-XAH16 : 16 pts. 200 to 240V AC (Input lag 15ms max.)
8 / 16 pts. Output module (terminal block)
EH-YT8 : 8 pts. Transistor (sink)
EH-YTP8 : 8 pts. Transistor (source)
EH-YT16 : 16 pts. Transistor (sink)
EH-YTP16 : 16 pts. Transistor (source)
EH-YTP16S : 16 pts. Transistor (source with short circuit protection)
EH-YS16 : 16 pts. Triac
EH-YR12 : 12 pts. Relay
EH-YR16 : 16 pts. Relay
EH-YR8B : 8 pts. Isolated relay
EH-YR16D : 16 pts. Relay(2 common)
32 pts. Input module (connector)
EH-XD32 : 32 pts. 24V DC (Input lag 5ms max.)
EH-XDL32 : 32 pts. 24V DC (Input lag 15ms max.)
EH-XDS32 : 32 pts. 24V DC (Input lag 1ms max.)
32 pts. Output module (connector)
EH-YT32 : 32 pts. Transistor (sink)
EH-YTP32 : 32 pts. Transistor (source)
64 pts. Input module (connector)
EH-XD64 : 64 pts. 24V DC (Input lag 1ms max.)
32 pts. Output module (connector)
EH-YT32 : 32 pts. Transistor (sink)
EH-YTP32 : 32 pts. Transistor (source)
64 pts. Input module (connector)
EH-XD64 : 64 pts. 24V DC (Input lag 1ms max.)
64 pts. Output module (connector)
EH-YT64 : 64 pts. Transistor (sink)
EH-YTP64 : 64 pts. Transistor (source)
32 pts. Input module (Spring type terminal block)
EH-XD32E : 32 pts. 24V DC (Input lag 5ms max.)
EH-XDL32E : 32 pts. 24V DC (Input lag 16ms max.)
32 pts. Output module (Spring type terminal block)
EH-YT32E : 32 pts. Transistor (sink)
EH-YTP32E : 32 pts. Transistor (source)
Digital input and output modules
DC Input and DC Output modules
EH-XD32H : 32 pts. DC 24V input
(EM / H-200 compatible connector type)
EH-YT32H : 32 pts. DC 24V output
(EM / H-200 compatible connector type)
Analog input and output modules
Analog Input module
EH-AX44 : 12-bit analog input, Current 4 to 20mA, Voltage 0 to 10V, 4ch each
EH-AX8V : 12-bit analog input, Voltage 0 to 10V, 8ch
EH-AX8H : 12-bit analog input, Voltage -10 to 10V, 8ch
EH-AX8I : 12-bit analog input, Current 4 to 20mA, 8ch
EH-AX8IO : 12-bit analog input, Current 0 to 22mA, 8ch
EH-AXH8M : 14-bit analog input, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 8ch
EH-AXG5M : 16-bit analog input, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 5ch Isolated
Analog Output module
EH-AY22 : 12-bit analog output, Current 4 to 20mA, Voltage 0 to 10V, 2ch each
EH-AY4V : 12-bit analog output, Voltage 0 to 10V, 4ch
EH-AY4H : 12-bit analog output, Voltage -10 to 10V, 4ch
EH-AY4I : 12-bit analog output, Current 4 to 20mA
EH-AY2H : 12-bit analog output, Voltage -10 to 10V, 2ch
EH-AYH8M : 14-bit analog output, Current 0 to 22mA / 4 to 22mA, Voltage 0 to 10V, 8ch
EH-AYG4M : 16-bit analog output, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 4ch Isolated
Temperature Detective Input module
EH-PT4 : Signed 15-bit, Pt 100 / Pt 1,000, 4ch
EH-TC8 : Signed 15-bit, Thermo-couple (K, E, J, T, B, R, S, N) 8ch
EH-RTD8 : Signed 15-bit, Pt 100 / Pt 1,000, 6ch (3 wire) / 8ch (2 wire)
Counter modules
High speed counter module
EH-CU : Maximum 100kHz, 2ch
EH-CUE : Maximum 100kHz, 1ch
Communication and Network modules
Serial communication Module: EH-SIO
Interface : RS-232C×1, RS-232C / 422 / 485×1
Communication mode : Half-duplex
Communication speed : 300-57, 600bps
Communication protocol : Non-protocol
Modbus-RTU master
PROFIBUS® DP V0 Master / Slave Controller
Number of slave-connected units: Max. 125 (of which maximum 22 units are EH-IOCP2)
Communication speed Max. 12Mbps
Communication distance Max. 1,200m (Lower than 93.75kbps)
Input / Output data 512 words / 512 words
PROFIBUS® DP V0 Master / Slave Controller
Number of slave-connected units: Max. 125 (of which maximum 22 units are EH-IOCP2)
Communication speed Max. 12Mbps
Communication distance Max. 1,200m (Lower than 93.75kbps)
Input / Output data 512 words / 512 words
EtherCAT® slave controller
1,408 points for maximum input and output (analog input and output 176 ch)
Users can create any configurations because of the coupler type. It can be also applied to the large-scale control system.
Passing down the I/O module assets of the EH-150 / EHV / EHV+ Series
Power supplies, bases, and I/O modules (some are excluded) of the EH-150 / EHV / EHV+ Series can be used.
High-speed response and high reliability
At the fastest pace, the communication cycle is 200 µs. When communication abnormalities occur, the output data can be retained.
Configuration Example

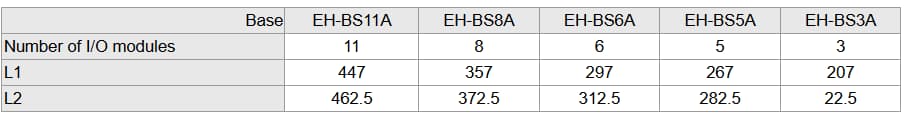

Dimensions
Specifications

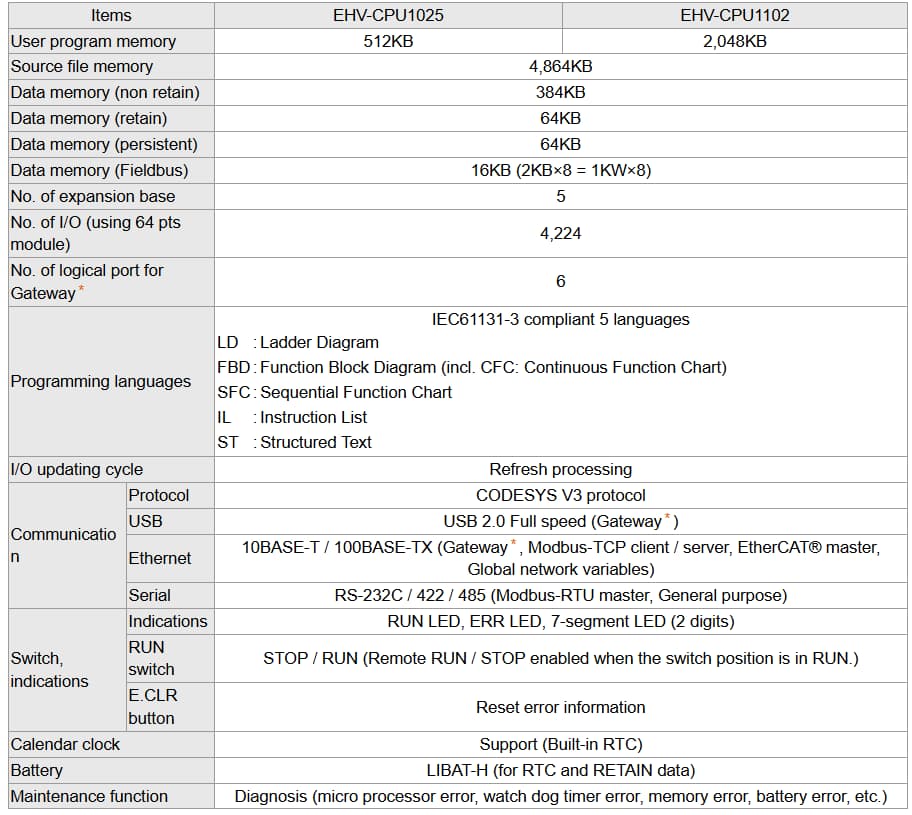

CPU Module
- Gateway: Communication with HX-CODESYS

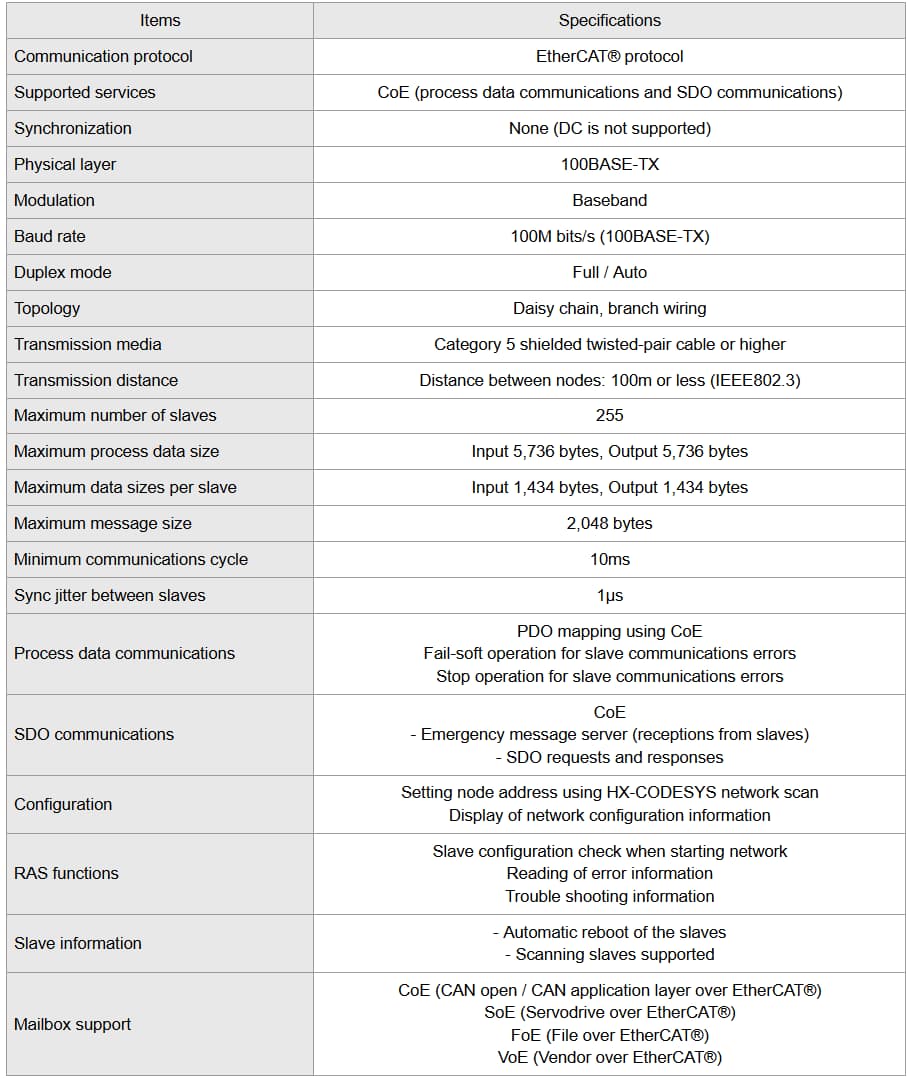

EtherCAT® Master Specifications
Note :
- Please note that using various Ethernet based communication (EtherCAT®, Modbus-TCP, NVL, Gateway) at the same time will limit the communication performance.
- If connected slave devices are drives (e.g. servo drives), it is strongly recommended to use profile mode in their operation mode. Since EtherCAT® cycle of the CPU is not fast enough, cyclic synchronous mode may not work in full performance.

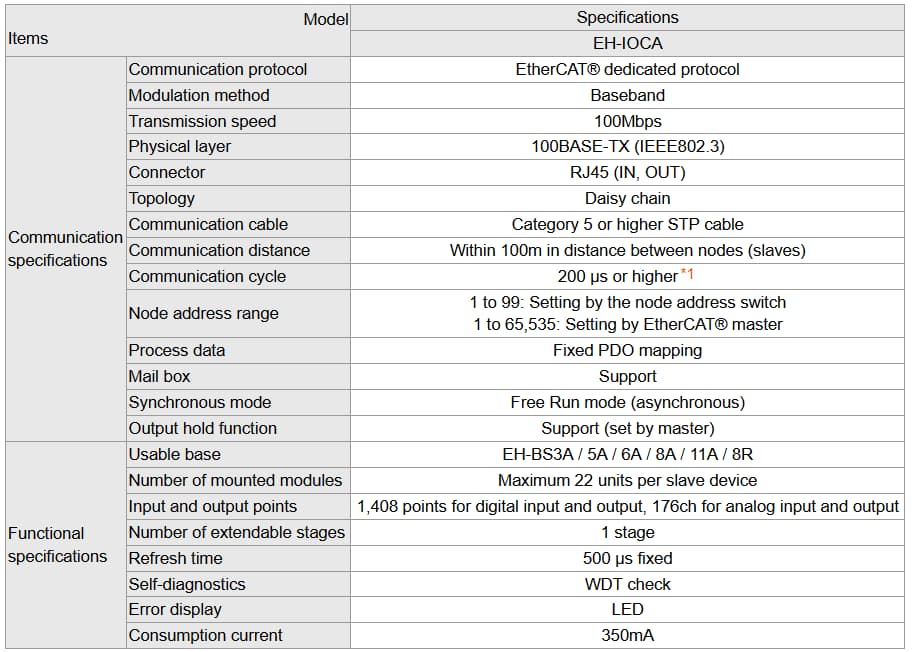

EtherCAT® Slave Controller Specifications
- The communication cycle depends on EtherCAT® master specifications.

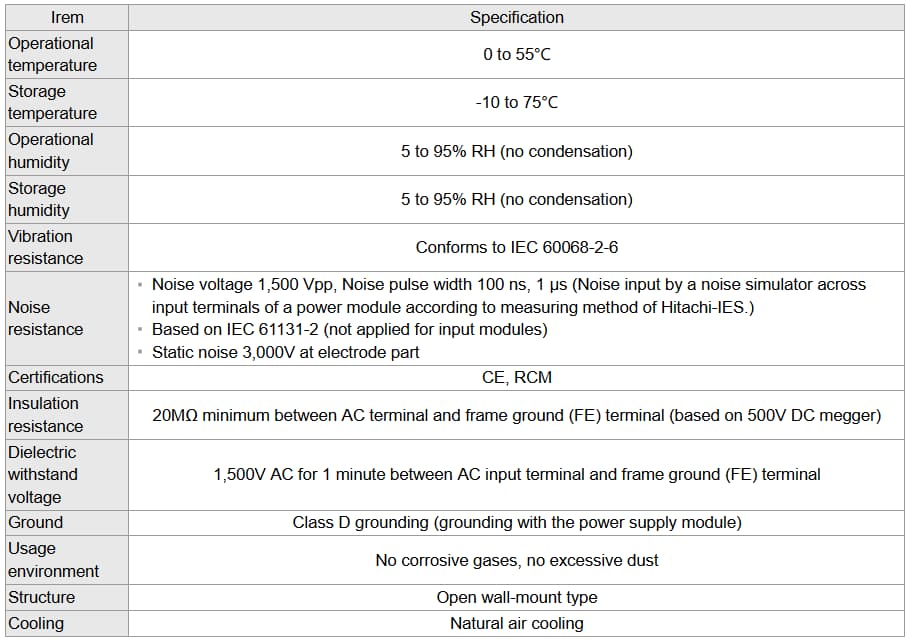

General Specifications
