- It gets a circuit breaker tripped electrically with regular time when control power supply is broken down and is used with Shunt coil, SHT. In case there is no DC power, It can be used as the rectifier which supplies DC power to a circuit breaker by rectifying AC power.
| Ratings | Specification | |
|---|---|---|
| Model | CTD-100 | CTD-200 |
| Rated input voltage(V) | AC100/110 | AC200/220 |
| Frequency(Hz) | 50/60 | 50/60 |
| Rated charge voltage(V) | 140/155 | 280/310 |
| Charging time | Within 5S | Within 5S |
| Trip possible time | Over 3 MIN | Over 2 MIN |
| Range of Input voltage(%) | 85–110 | 85–111 |
| Condenser capacity | 400µF | 160µF |

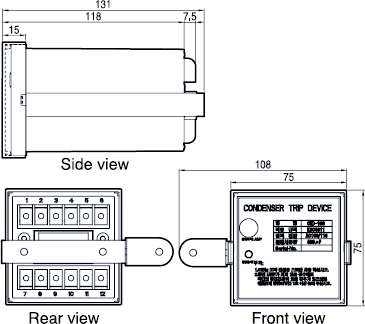

External dimension

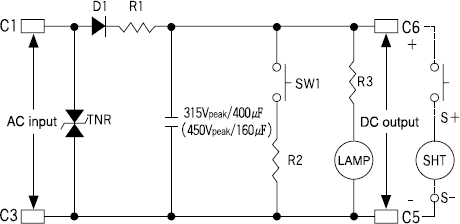

Circuit diagram
