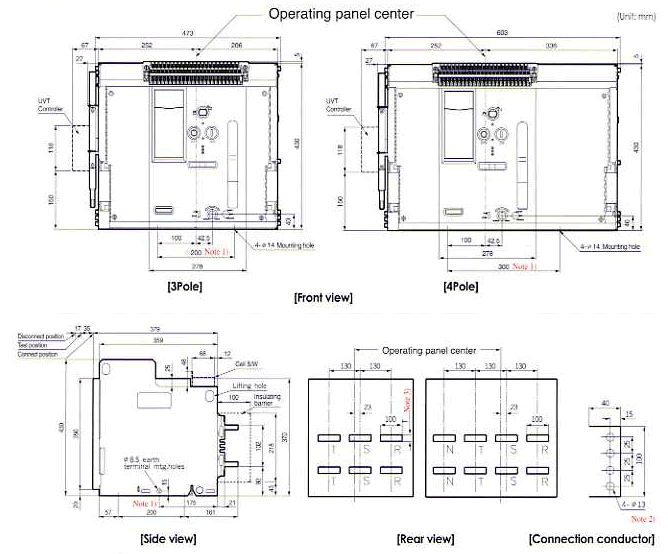

Air Circuit Breakers : External dimensions : Horizontal terminal type (630-1600A)

Note

*1

Size of mounting hole

*2

Size of connection conductor of ACB

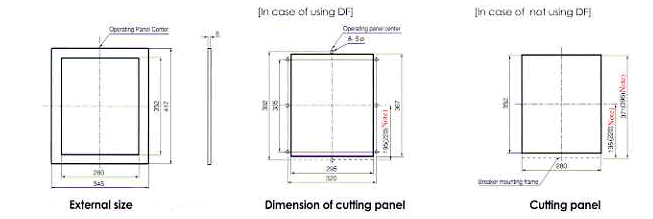

Door Frame (DF) : (630-1600AF/3,4Pole)

• Close
