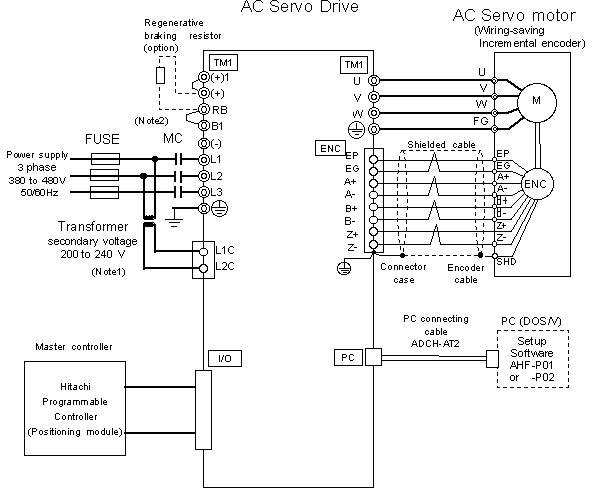

Terminal connection diagram

*1
Connect three phase 380 to 480V to L1, L2 and L3, and single phase 200 to 240V to L1C and L2C. Do not input 380 to 480V to L1C and L2C. Be sure to be the secondary voltage 200 to 240V when the transformer is used.
*2
In case of insufficient braking capacity, remove the short bar between B1 and RB and connect the external braking resistor between RB and (+).
  • Grounding connecting terminal ( terminal )
  • Connect three phase 380 to 480 V to L1, L2 and L3, and single phase 200 to 240 V to L1C and L2C. Do not input 380 to 480 V to L1C and L2C. Be sure to be the secondary voltage 200 to 240 V when the transformer is used.
  • In case of insufficient braking capacity, remove the short bar between B1 and RB and connect the external braking resistor between RB and (+).
