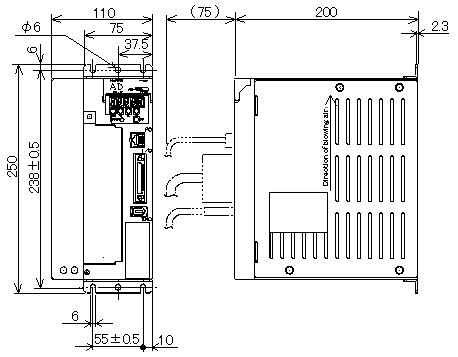

AC Servo : AD Series : Servo Driver : Dimensions
ADA2, ADAX-20, 30LS

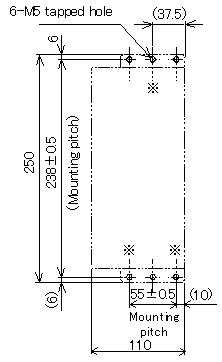

Mounting hole working drawing
Mount with the three points indicated by *marks, or with more than 2 points upper side and 2 points downside.
Information in this sheet is subject to change for improvement without notice.
