AC Servo : AD Series : Servo Driver : Dimensions

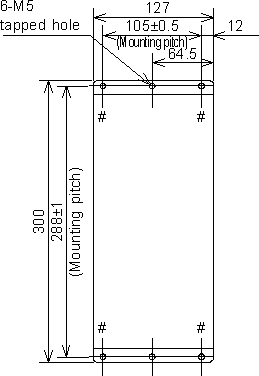

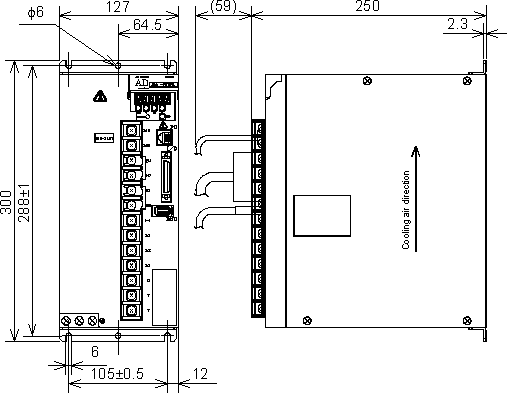

Mounting hole working drawing

*

Use 4 holes shown # mark above to fix the drive. The rest 2 holes are service holes.

Information in this sheet is subject to change for improvement without notice.
