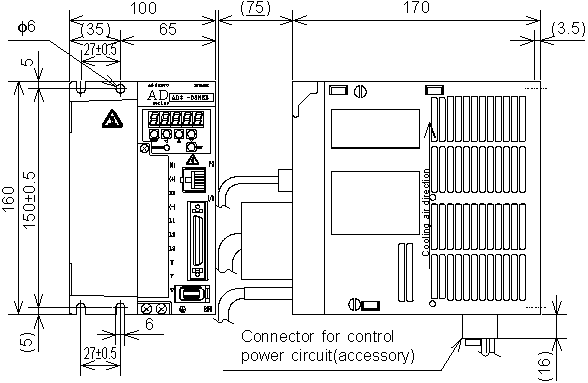

AC Servo : AD Series : Servo Driver : Dimensions

ADA2, ADAX-10, 15LS
ADA3, ADAX3-08NSE

ADA2, ADAX-10, 15LSADA3, ADAX3-08NSE

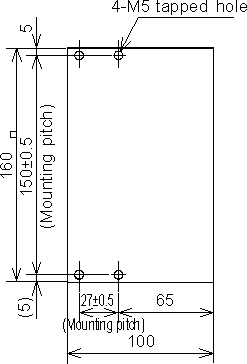

Mounting hole working drawing

ADA2, ADAX-10, 15LSADA3, ADAX3-08NSE

Information in this sheet is subject to change for improvement without notice.
