Overview

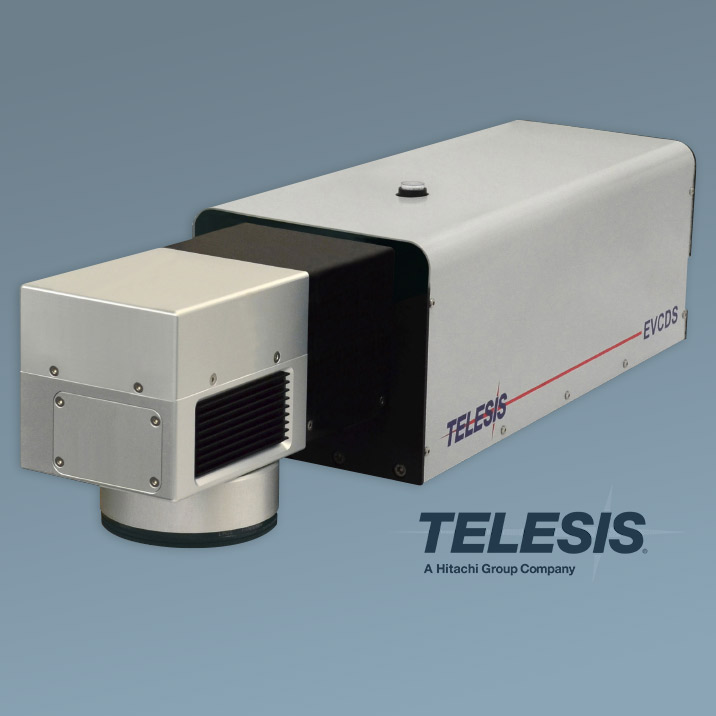

YVO4 laser for the electrical and electronic components industries

Marking on various materials possible

Capable of marking very small characters and 2D codes on various materials such as metals, electronic components, ceramics, rubber, etc., taking advantage of the narrow beam diameter.

High-contrast marking on metals

Black marking on stainless steel and other metals achieved.

Suited for various applications

Can be used for marking on a variety of materials (stationary and moving objects*) as well as for cutting and processing applications.

Some restrictions apply

Specification

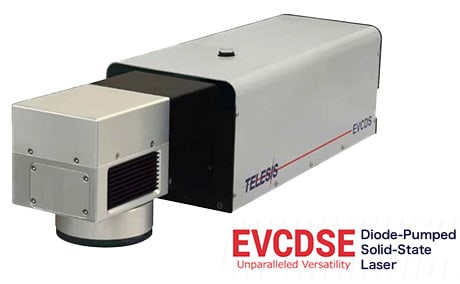

Model	EVCDSE
Laser type	Class 4 YVO4 laser
Wavelength	1,064nm
Average output	9W
Marking method	Galvano scanning method
Pulsed laser frequency	10 ~ 240kHz
Marking area / Working clearance	65 x 65mm / 97mm 110 x 110 mm /181mm 290 x 290mm / 493mm
Guide laser pointer	Class 1 semiconductor red laser of λ = 655 nm
User interface	Laser Marker Application PC Software
Cooling method	Air-cooled
Head cable length	1.75 m
Power supply voltage	AC100 ~ 120V ± 10% AC200 ~ 230V ± 10%
Power consumption	400 VA max./Average: 320 W
Operating temperature	15 ~ 35℃
Operating humidity	10-85% (no condensation)
Weight	Head: approx. 15 kg Controller: approx. 15 kg

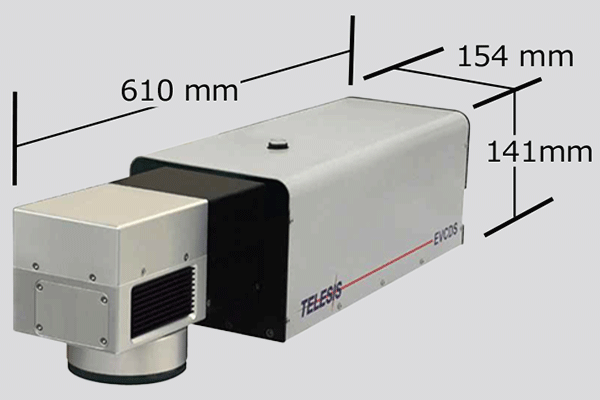

Dimensions
