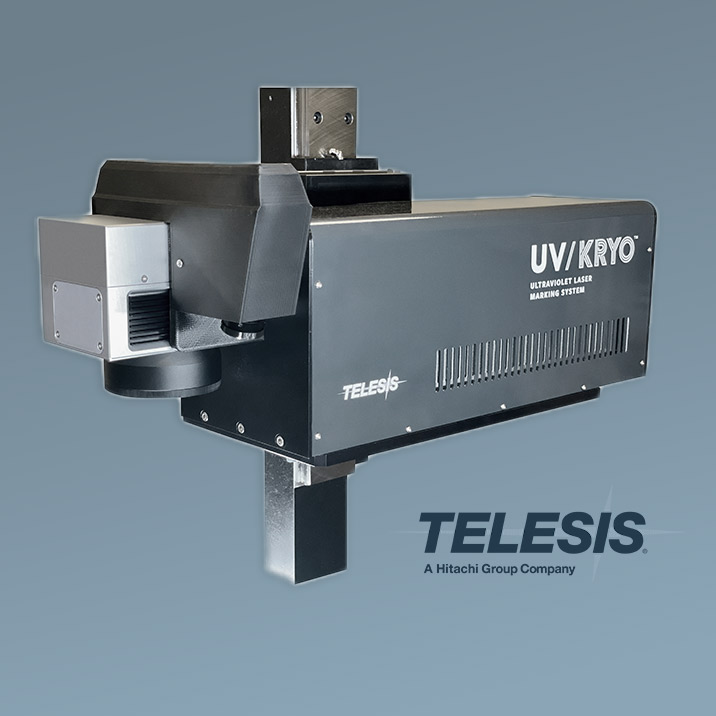

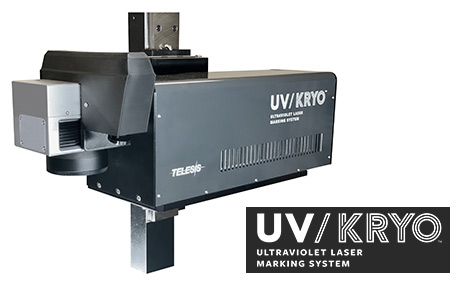

Marking SystemUV Laser Marker

Overview

UV lasers for the food, pharmaceutical, and consumer goods industries

High-power UV laser for high-color-saturation and high-definition marking

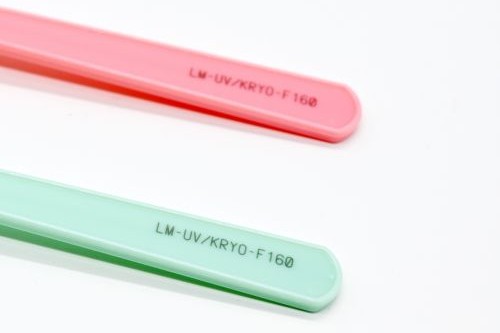

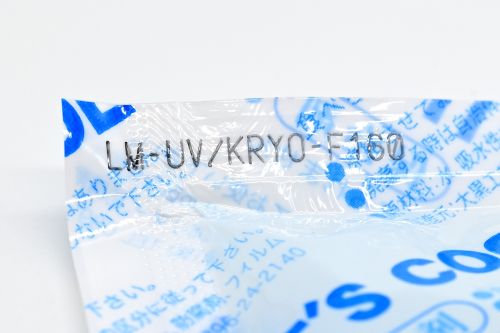

High-power UV laser provides high visibility for marking on films and plastic packages, which are frequently used in the packaging industry.

Damageless marking with reduced thermal damage

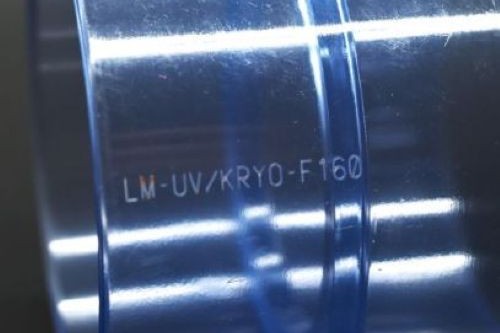

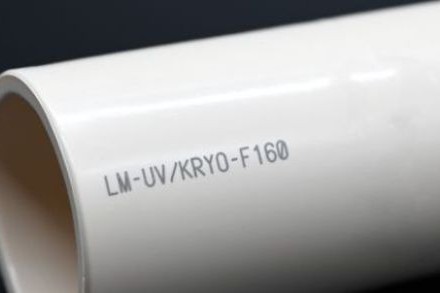

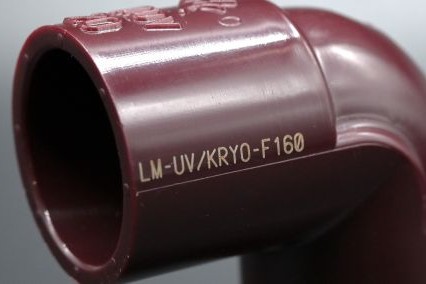

Enables marking on plastic products, small and thin electronic components, glass, and medical equipment with reduced thermal stress. Marking and processing with minimal damage to products achieved.

Suited for various applications

Can be used for marking on a variety of materials (stationary and moving objects*) as well as for cutting and processing applications.

  • Some restrictions apply

Application

Specification

Model UV/KRYO
Laser type Class 4 YVO4 laser
Wavelength 355nm
Average output 3W
Marking method Galvano scanning method
Pulsed laser frequency 30 ~ 200kHz
Marking area/Working clearance
  • 90 x 90mm / 210mm
  • 170 x 170 mm /300mm
  • 300 x 300mm / 495mm
User interface
  • Laser Marker Application
  • PC Software
Power supply voltage
  • AC100 ~ 120V ± 10%
  • AC200 ~ 230V ± 10%
Power consumption 400 VA max./Average: 275 W
Operating temperature 10 ~ 30℃
Operating humidity 65% or less (no condensation)
Weight
  • Head: approx. 19 kg
  • Controller: approx. 19 kg

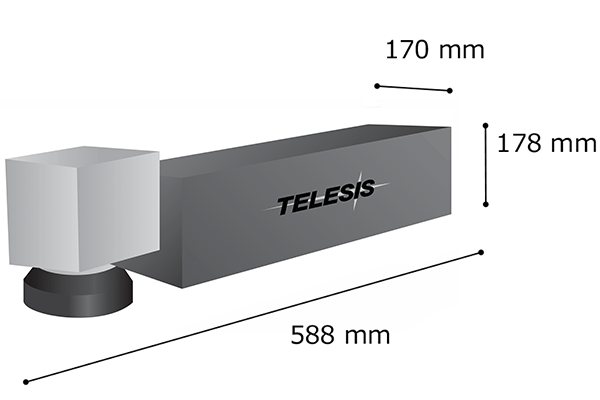

Dimensions
