Marking SystemFiber Laser Marker

Index

Overview
Application
Specification
Dimensions

Overview

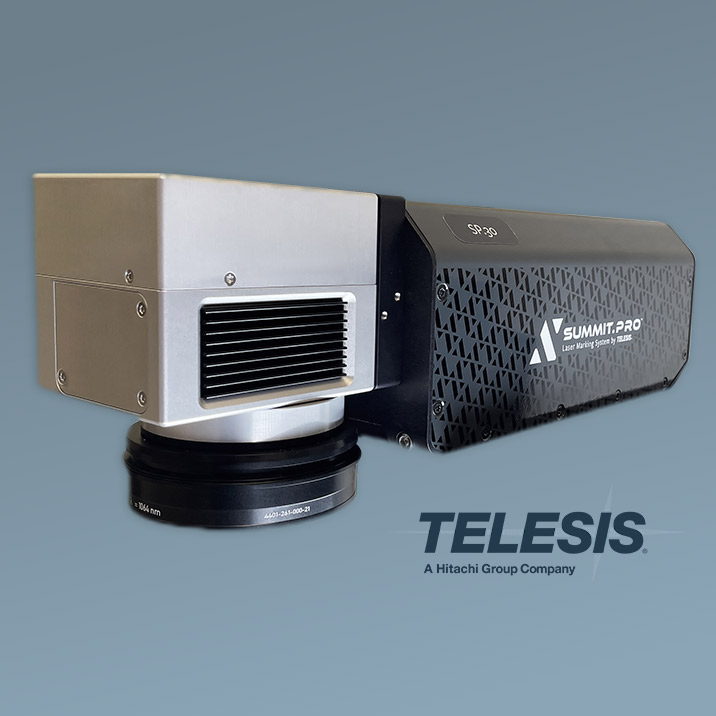

High-power fiber laser for the automotive and steel industries

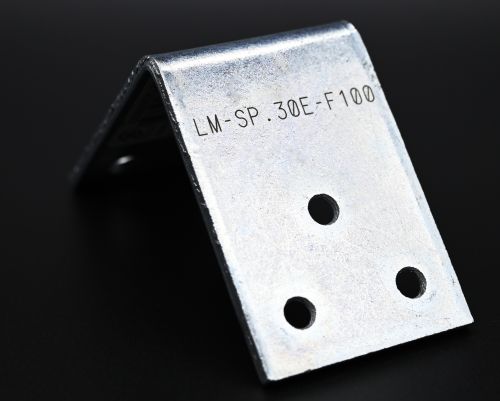

Marking on metals

In addition to automotive parts, steel products, electronic components, ceramics, rubber, and other various materials, marking on metals, which was not possible with CO2 lasers, is now possible.

Deep marking

Deep marking, which offers marking visible even after post-process treatments like polishing or painting, is possible.

Suited for various applications

Can be used for marking on a variety of materials (stationary and moving objects*) as well as for cutting and processing applications.

Some restrictions apply

Application

Specification

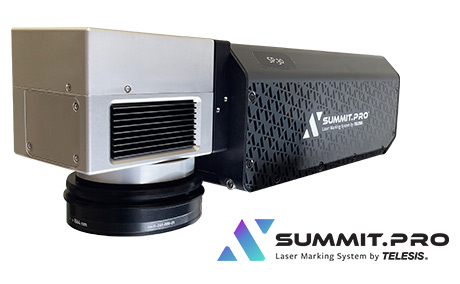

Series	Summit Pro SP Series
Model	SP30E	SP30ZE
Laser type	Class 4 Yb fiber laser
Wavelength	1,064nm
Average output	30W
Marking method	Galvano scanning method	Galvano scanning method (3D)
Pulsed laser frequency	5~200kHz
Marking area/Working clearance (± variable range)	65 x 65mm / 97mm 110 x 110mm / 185mm 290 x 290mm / 493mm	65 x 65mm x 12mm / 97mm (±6mm) 110 x 110mm x 32mm / 185mm (±16mm) 290 x 290mm x 212mm / 493mm (±106mm)
Guide laser pointer	Class 1 semiconductor red laser of λ = 655 nm
User interface	Laser Marker Application PC Software
Fiber cable length	5 m
Power supply voltage	AC100 ~ 120V / AC200 ~ 230 V ± 10%
Power consumption	420 VA max./Average: 220 W
Operating temperature	15 ~ 40℃
Operating humidity	10-80% (no condensation)
Weight	Head: approx. 8 kg　Controller: approx. 20 kg

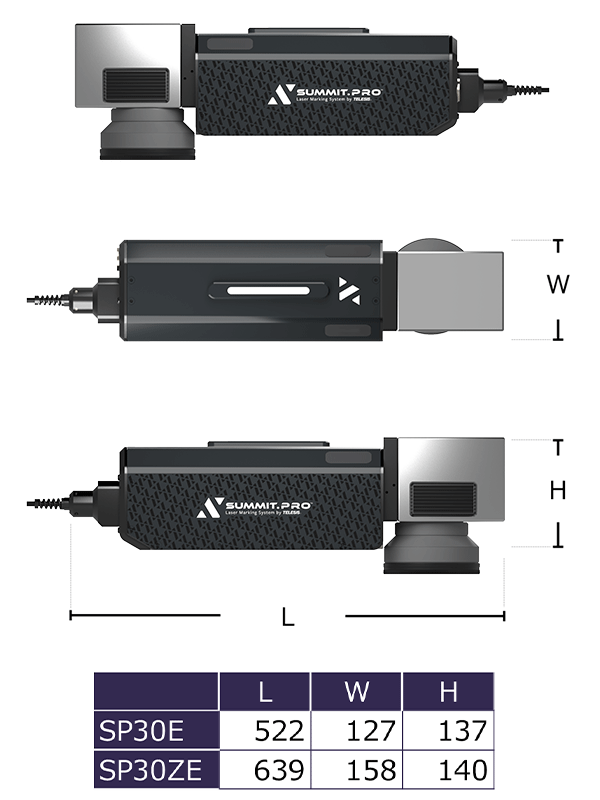

Dimensions
