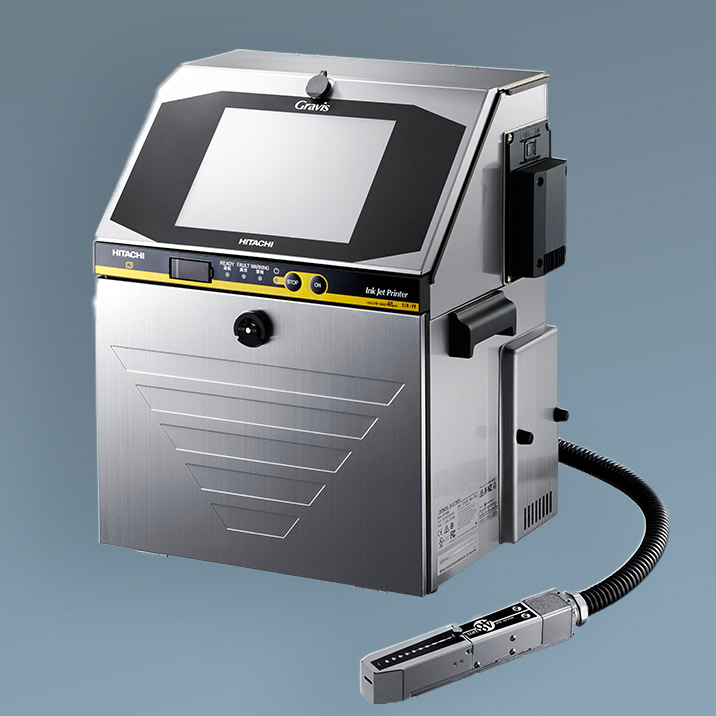

Marking SystemGravis UX Series
[High-speed model dedicated to 1- and 2-line printing]

Environmental friendliness and low running cost
High reliability
Simple touch panel operation and high maintainability

Index

Application Examples
Features
Specification

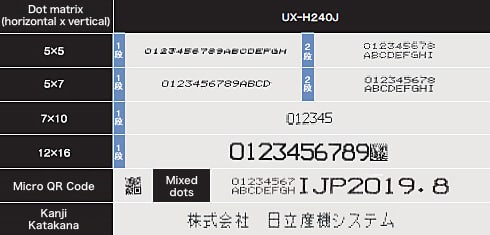

Print Sample

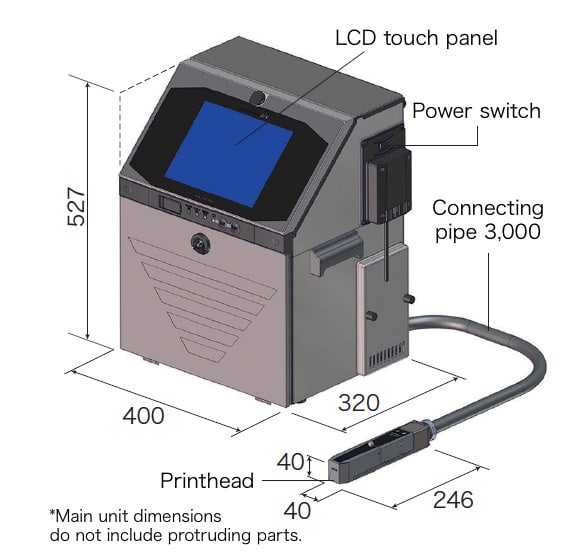

Dimensions
Inquiries

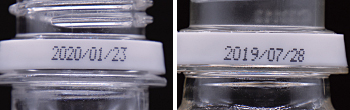

Application Examples

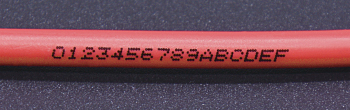

Cable printing (black printing, 100 m/minute)

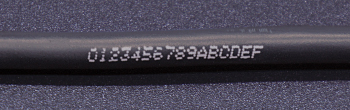

Cable printing (white printing, 80 m/minute)

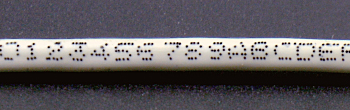

Cable printing (black printing, 470 m/minute)

Features

Print rate made faster by approx. 30% (compared to former models)

Capable of printing up to 650 m/minute* for high-speed lines such as those for cables

With 5 x 5 dots, 10 characters/inch

High-speed printing quality improved by adopting a new print control system

Printing quality in high-speed printing improved by adopting a new print control system dedicated to high-speed printing, in addition to the conventional print control system

Support for new pigmented inks for cable printing

Support provided for new pigmented inks for cable printing with improved adhesion compared to conventional inks

New functions for cable printing added

New functions added include the function for printing and signal output at intervals of the specified number of meters* and the optional function that detects encoder backward rotation, and it correctly resumes printing when the encoder starts rotating forward

The error for signal output at intervals of 1 m at a speed of 600 m/minute is approximately ±0.5%.

Specification

Specification		UX-H240J
Nozzle size/Number of printheads/Printhead direction		Nominal 48 μm/1/All directions
Maximum number of print lines		2
Maximum number of print characters		1,000 (1 line), 500 (2 lines)
Number of printable lines by character size (horizontal x vertical) Maximum number of vertical dots: 16 In the print quality priority mode, 1-line 5 x 5 and 5 x 7 only	4 x 5	1 line and 2 lines
	5 x 5	1 line and 2 lines
	5 x 8 or 5 x 7	1 line and 2 lines
	7 x 10	1 line
	10 x 12	1 line
	12 x 16	1 line
Maximum character height (Depends on print distance, print speed and operating temperature)		Approx. 3.5 mm
Input device & display		Input device: Touch panel (input sound provided) Display: 10.4” color LCD with backlight
Maximum print rate		4,166 characters per second
Printable character types	Standard characters	Alphanumeric (A-Z, 0-9), katakana (12 x 16, 10 x 12, 7 x 10, 5 x 8), general symbols (27 types), spaces: 171 types in total Dedicated date characters: 25 in total (7 x 10 and 5 x 8) Kanji (JIS Types 1 and 2: 12 x 16, 11 x 11) Half-width characters: 7 types in total, including general symbols and spaces (In the print quality priority mode, alphanumeric only)
	User patterns	200 patterns each for dot matrix (User patterns cannot be used in the print quality priority mode)
	Barcode printing 2D code	code39, ITF, NW-7, JAN-13, JAN-8, code128 (EAN128), UPC-A, UPC-E, DataMatrix code, Micro QR Code, GS-1 data bar(Barcode and 2D code cannot be used in print quality priority mode)
Printing-related settings		Print content, character height, character width, character posture, starting position, continuous printing interval, continuous printing count, number of print lines, dot matrix, space between characters, horizontal character scaling (2-9 times), space between lines (not available for 1-line printing), numbering
	Automatic date update	99 types with year, month, date, hour, minute, second, week number, day of the week printing function and substitution function
	Data storage capacity	Up to 2,000 items of combinations of print content and format (depends on data content)
Input and output signals	Input	Start printing, Stop printing, Speed following pulse, Remote control, Reciprocating printing
Input and output signals	Output	Print ready, Fault, Warning, Print in progress or Print complete, Online output
Ink and makeup fluid management		Automatic concentration adjustment function, with warning output function for ink and makeup fluid levels, with ink life warning output function
Auxiliary functions for operation		Operational status display, operation guidance, password function, editing of other data during printing
Auxiliary functions for maintenance		Operation time management display, circulation control function, line monitor, automatic cleaning function, confirmation of operation history, etc.
External communication function (serial communication)		RS-232C (115,200 bps max.), half-duplex communication, start-stop synchronization
Ethernet communication* (100BASE-T)	Functions	Modbus communication, EtherNet/IP communication, OPC-UA communication Please contact us for details on communication specifications.
Other functions		Speed following function, frequency division function
Printhead cable (connecting pipe): length, angle		3 m, 0°/90°
Operating temperature and humidity		0-40°C (ink 1067K), 30-90%RH (no condensation or freezing)
Operating atmosphere		No corrosive gases
Protective structure		IP65 (not including printhead)
Power supply		AC100-120/200-240 V ±10%, 50/60 Hz
Dimensions/Weight/Exterior		400 x 320 x 527 mm (W x D x H)/Approx. 27 kg/Stainless steel hairline finish
