Electrical noise interference may occur on nearby equipment such as a radio receiver. This magnetic choke filter helps reduce radiated noise (can also be used on output)
Model name Configuration
ZCL-B40 (for small capacity model)
ZCL-A (No matter the capacity of the inverter and the motor)
ZCL-B75 and ZCL-B95 (For mass model)

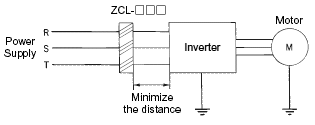

Connecting Diagram
ZCL-B40
| Inverter maximum application motor class(kW) | 200V Class | 400V Class | ||||||
|---|---|---|---|---|---|---|---|---|
| Input side | Output side | Input side | Output side | |||||
| Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | |
| 0.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 0.4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 0.75 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 1.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 2.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 3.7 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 5.5 | Out side application | Out side application | 1 | 4 | 1 | 4 | ||
| 7.5 | 1 | 4 | 1 | 4 | ||||
ZCL-A
| Inverter maximum application motor class(kW) | 200V Class | 400V Class | ||||||
|---|---|---|---|---|---|---|---|---|
| Input side | Output side | Input side | Output side | |||||
| Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | |
| 0.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 0.4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 0.75 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 1.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 2.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 3.7 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 5.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 7.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
| 11 | 1 | 3 | 1 | 3 | 1 | 4 | 1 | 4 |
| 15 | 1 | 2 | 1 | 2 | 1 | 4 | 1 | 4 |
| 18.5 | 4 | 1 | 4 | 1 | 1 | 3 | 1 | 3 |
| 22 | 4 | 1 | 4 | 1 | 1 | 3 | 1 | 3 |
| 30 | 4 | 1 | 4 | 1 | 1 | 2 | 1 | 2 |
| 37 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
| 45 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
| 55 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
| 75 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
| 90 | Out side application | 4 | 1 | 4 | 1 | 4 | 1 | |
| 110 | 4 | 1 | 4 | 1 | 4 | 1 | ||
| 132 | 4 | 1 | 4 | 1 | 4 | 1 | ||
