Inverter : Input side noise Filter <For EMC Compliance>

Model name Contiguration

Specifications

Model name	Rated current (A)	Applicable inverter capacity (kW)		Weight (kg)
		400V class	200V class
NF-CEH7	7	Up to 2.2	0.4, 0.75	0.7
NF-CEH10	10	3.7, 4.0	1.5	0.7
NF-CEH20	20	5.5, 7.5	2.2, 3.7	1.0
NF-CEH30	30	11	5.5	1.3
NF-CEH40	40	15	7.5	1.4
NF-CEH50	50	18.5	—	2.9
NF-CEH60	60	22	11	3.0
NF-CEH80	80	30	15	3.6
NF-CEH100	100	37	18.5	4.3
NF-CEH150	150	45, 55	22, 30	9.0
NF-CEH200	200	75, 90	37	16.0
NF-CEH250	250	110	45	16.0
NF-CEH300	300	132, 150	55, 75	23.0

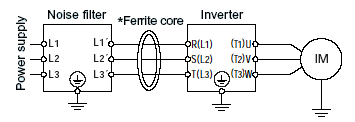

To meet European EMC class A limits

Model name	Applicable inverter capacity (kW)		Required ferrite Core
	200V class	400V class
NF-CEH7	0.4, 0.75	0.75, 1.5, 2.2	—
NF-CEH10	1.5	3.7, 4.0	—
NF-CEH20	2.2, 3.7	5.5, 7.5	—
NF-CEH30	5.5	11	—
NF-CEH40	7.5	15	—
NF-CEH50	—	18.5	—
NF-CEH60	11	22	—
NF-CEH80	15	30	—
NF-CEH100	18.5	37	—
NF-CEH150	22, 30	45, 55	—
NF-CEH200	37	75, 90	—
NF-CEH250	45	110	—
NF-CEH300	55, 75	—	—
NF-CEH300	—	132, 150	ZCL-B75

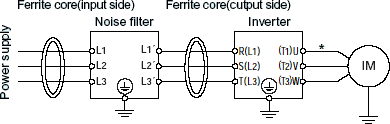

To meet European EMC class B limits

Model name	Applicable inverter capacity (kW)		Required ferrite Core at output side	Required ferrite Core at input side
	200V class	400V class
NF-CEH7	0.4, 0.75	0.75, 1.5, 2.2	FC-H40	—
NF-CEH10	1.5	3.7, 4.0	FC-H40	—
NF-CEH20	2.2, 3.7	5.5, 7.5	FC-H40	—
NF-CEH30	5.5	11	FC-H40	—
NF-CEH40	7.5	15	FC-H40	—
NF-CEH50	—	18.5	FC-H300	—
NF-CEH60	11	22	FC-H300	—
NF-CEH80	15	30	FC-H300	—
NF-CEH100	18.5	37	FC-H300	—
NF-CEH150	22, 30	45, 55	FC-H300	—
NF-CEH200	37	—	FC-H300	—
NF-CEH250	45	—	FC-H300	—
NF-CEH300	55, 75	—	FC-H300	—
NF-CEH200	—	75, 90	ZCL-B75	ZCL-B75
NF-CEH250	—	110	ZCL-B75	ZCL-B75

*

Use shielded wires between the inverter and the motor, and make sure not to exceed 20m(66ft).
