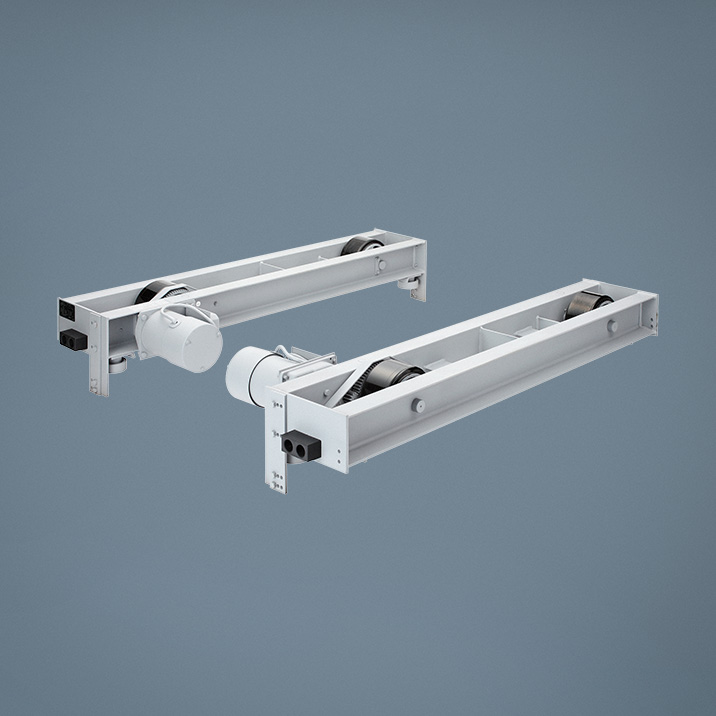

Crane Systems and Related EquipmentCrane Saddle: TLM Type(Single Speed Type)

Index

Overview

The new TLM type toprun type trackless crane saddle is a sister product of the THM type saddle that economic efficiency is pursued, and suitable for light to medium load conditions. In accordance with the trend of bigger building and heavier load, maximum wheel load 10 ton and 15 ton (made to order) classes of the trackless crane saddles are lined up. You can select the most suitable trackless trolley from a variety of models.

Specifications

  • Source Power
    3-Phase 200V 50/60Hz, 220V 60Hz, 380V to 400V/415V 50Hz, 400V to 440V 60Hz
  • Max. No. of starts per hour and duty factor
    Max. No. of starts per hour: 250 starts/h (THM5-45 and TLM5-45: 150 starts/h), Duty factor: 25%
  • Protection Structure
    Dust proofing and indoor application (GU can be used outdoor)
Model TLM5-28 TLM5-30 TLM5-45 TLM5-100 TLM5-150
(Make-to-order)
Max Wheel Load (ton) 2.8 3.2 4.5(4.0) * With 2 wheels 10.0
(With 2 wheels 7.0) *		 With 2 wheels 15.0
(With 2 wheels 11.0) *
Traveling Speed (m/min) 50Hz 21
60Hz 25
Motor Output (kW) 50Hz 0.50 × 2 (wiht brake) 0.50 × 2 (wiht brake) 0.70 × 2 (wiht brake) 2.5 × 2 (wiht brake) 2.5 × 4 (wiht brake)
60Hz 0.60 × 2 (wiht brake) 0.60 × 2 (wiht brake) 0.84 × 2 (wiht brake) 2.9 × 2 (wiht brake) 2.9 × 4 (wiht brake)
No. of starts per hour and duty factor 250 starts/h, 25%ED 150 starts/h, 25%ED 250 starts/h, 25%ED
Power Source (3-phase) 200V 50Hz/60Hz, 220V 60Hz, 380 to 400V/415V 50Hz, 400V to 440V 60Hz
Traveling Rail
(H-beam width) (mm)		 150,175,
200		 150,175,
200		 150,175,
200		 150,175,
200		 200
Approx. weight (kg) 160 × 2 230 × 2 300 × 2 650 × 2 1200 × 2
Applicable Hoist Monorail Monorail / Double rail

General note:
The saddle is coated for rust prevention only.

  • Figure shown in ( ) is applied for a monorail girder.

Saddle Selection

  • The capacity shown in the diagram shows approximate capacity to the maximum span. In the actual selection, the wheel load including the girder must be calculated.

Models

Type Max. Wheel Load (ton) Max. Span (m) Traversing Speed (m/min) Models Body Frame Structure
Toprun Type Saddle TH Type 1 10 21/25 TH5-10 Double-channel structure
2.8 12 TH5-28
3 16 TH5-30
3 20 THL5-30
5.6 18 TH5-56
5.6 20 THL5-56
7.5 20 TH5-75
11.2 20 25/30 TH-112
Toprun Type Trackless Saddle TLM Type 2.8 14 21/25 TLM5-28 Double-channel structure
3.2 16 TLM5-30
4.5 18 TLM5-45
10.0 20 TLM5-100
Suspension Type Crane Saddle SL Type 0.6 10 21/25 SL-6 L-type frame structure
1 10 SL5-10 Double-channel structure
2.8 12 SL6-28
3.0 16 SL5-30
5.6 16 SL5-56
Suspension Type Polyurethane Rubber Wheel Saddle SLM Type 1 10 SLM5-10 Double-channel structure
2.8 12 SLM5-28
Wheel Unit for Toprun Type Saddle TLU Type 2.8 — TLU5-28 —
5.6 — TLU5-56
Wheel Unit for Gantry Crane Saddle GU Type 4.5 — 25/30 GU-45 —
5.6 — 30/36 GU5-56
7.5 — GU5-75
  • When you use the wheel made of polyurethane rubber, be sure to earth the saddle body with a dedicated earth wire. When you use the earth brush in stead of the earth wire, remove coating and rust, and be sure to clean the surface of the rail so that the earth functions well.
