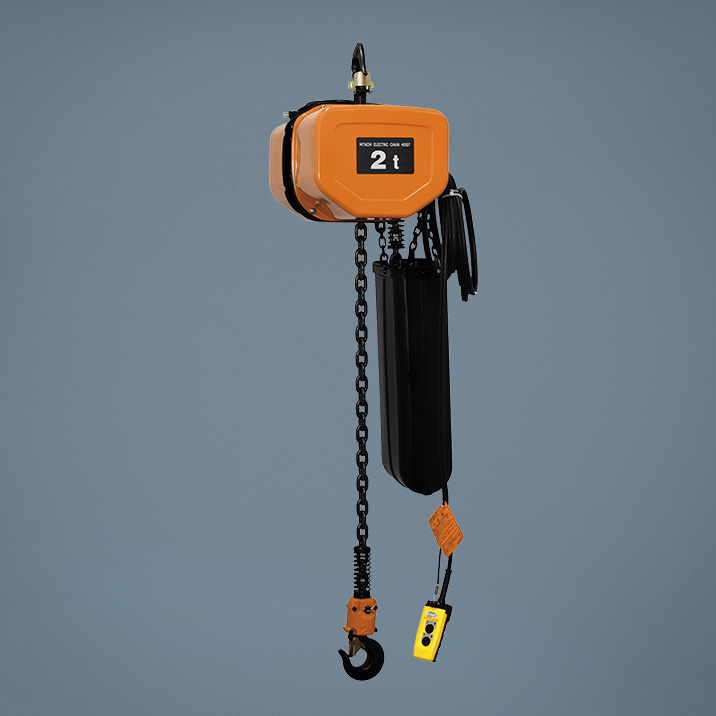

Crane Systems and Related EquipmentElectric Chain Hoist: High Speed Type F Series for Asia/Oceania

Index

Specifications
Inquiries

Specifications

SINGLE SPEED (3-phase) F(H)

Rated Load		1t	2t	3t	5t	10t	15t
Model Name		1F(H)	2F(H)	3F(H)	5F(H)	10F(H)	15F(H)
Standard Lift (m)		3 ·6	3 ·6	3 ·6	3 ·6	6	6
Hoisting Speed(m/min)	50Hz	7.1	6.8	4.1	2.8	2.8	1.8
Motor Output(kW)	50Hz	1.3	2.4	2.4	2.4	2.4 × 2	2.4 × 2
Link Chain	Diameter(mm)	Ø7.1	Ø10	Ø10	Ø10	Ø10	Ø10
Link Chain	Number of Falls	1	1	2	3	4	6
Rating		30% ED
Control Voltage		24 - 27V
Pushbutton Switch
Power Cord Length		5 m

DUAL SPEED (3-phase) FN(H)

Rated Load		2t	3t	5t	10t	15t
Model Name		2FN(H)	3FN(H)	5FN(H)	10FNH	15FNH
Standard Lift (m)		3 ·6	3 ·6	3 ·6	6	6
Hoisting Speed(m/min)	50Hz	6.8/1.7	4.1/1.0	2.8/0.7	2.8/0.7	1.8/0.45
Motor Output(kW)	50Hz	2.4/0.6			2.4/0.6 × 2
Link Chain	Diameter(mm)	Ø10	Ø10	Ø10	Ø10	Ø10
Link Chain	Number of Falls	1	2	3	4	6
Rating		20% ED
Control Voltage		24 - 27V
Pushbutton Switch
Power Cord Length		5 m

All dimensions and specifications are subject to change without notice.

Dimensions

1ton

SINGLE SPEED

Model Name		1F	1FH
Rated Load		1t
Dimensions(mm)	Z	535
	A	250
	B	250
	C	135
	D	170
	E	680
	G	23
Approx. Weight (kg)		42	47

All dimensions and specifications are subject to change without notice.

2ton

SINGLE SPEED

Model Name		2F	2FH
Rated Load		2t
Dimensions(mm)	Z	660
	A	280
	B	280
	C	175
	D	170
	E	845	1060
	G	26
Approx. Weight (kg)		80	87

DUAL SPEED

Model Name		2FN	2FNH
Rated Load		2t
Dimensions(mm)	Z	600
	A	280
	B	330
	C	185
	D	170
	E	845	1060
	G	26
Approx. Weight (kg)		96	102

All dimensions and specifications are subject to change without notice.

3ton

SINGLE SPEED

Model Name		3F	3FH
Rated Load		3t
Dimension(mm)	Z	820
	A	280
	B	280
	C	120
	D	245
	E	1090	1100
	G	42
Approx. Weight (kg)		99	113

DUAL SPEED

Model Name		3FN	3FNH
Rated Load		3t
Dimension(mm)	Z	820
	A	280
	B	330
	C	120
	D	245
	E	1090	1100
	G	42
Approx. Weight (kg)		112	126

5ton

SINGLE SPEED

Model Name		5F	5FH
Rated Load		5t
Dimensions(mm)	Z	1020
	A	280
	B	280
	C	145
	D	330
	E	1295	1305
	G	48
Approx. Weight (kg)		121	142

DUAL SPEED

Model Name		5FN	5FNH
Rated Load		5t
Dimensions(mm)	Z	1020
	A	280
	B	330
	C	145
	D	330
	E	1295	1305
	G	48
Approx. Weight (kg)		146	167

All dimensions and specifications are subject to change without notice.

10ton

SINGLE SPEED

Model Name		10FH
Rated Load		10t
Dimensions(mm)	Z	1060
	A	280
	B	280
	C	—
	D	—
	E	1040
	G	71
Approx. Weight (kg)		330

DUAL SPEED

Model Name		10FNH
Rated Load		10t
Dimensions(mm)	Z	1060
	A	280
	B	330
	C	—
	D	—
	E	1040
	G	71
Approx. Weight (kg)		360

All dimensions and specifications are subject to change without notice.

15ton

SINGLE SPEED

Model Name		15FH
Rated Load		15t
Dimensions(mm)	Z	1235
	A	280
	B	280
	C	—
	D	—
	E	1280
	G	90
Approx. Weight (kg)		490

DUAL SPEED

Model Name		15FNH
Rated Load		15t
Dimensions(mm)	Z	1235
	A	280
	B	330
	C	—
	D	—
	E	1280
	G	90
Approx. Weight (kg)		520

All dimensions and specifications are subject to change without notice.
