Drive Systems Submersible Motor: Canned Type

Index

Overview

Classifcation of Submersible Motors

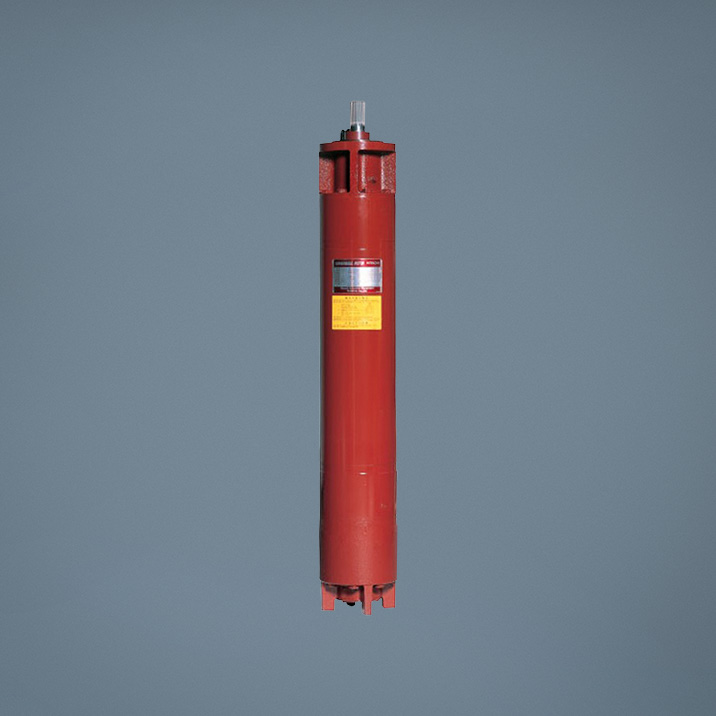

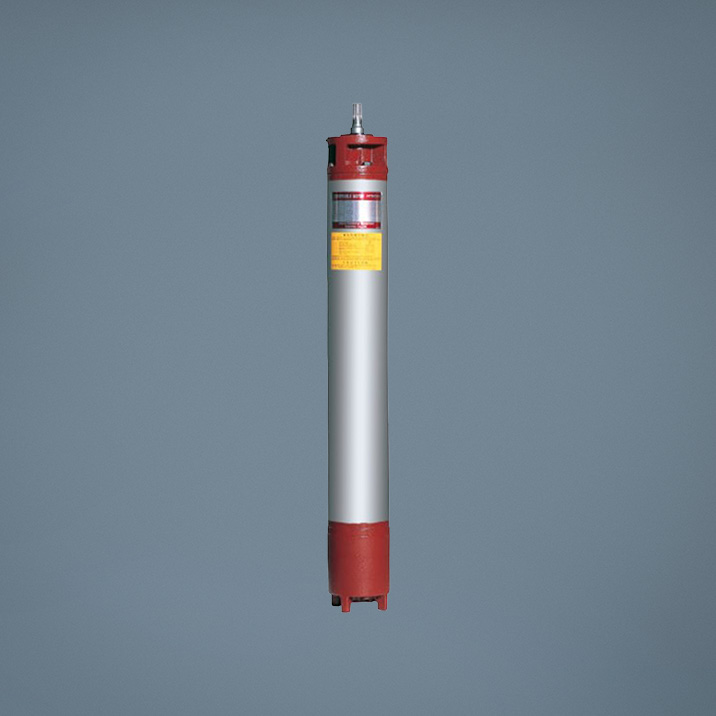

For Deep Wells
For Municipal Water Service, Industrial irrigation and Building Water Supply.

Specifications

Cable Connection Plug-in Type
Cable Length 3.8m (150 inches)
Shaft NEMA Splined
Flange NEMA Standard
Speed 50Hz 2P 3000 min-1
60Hz 2P 3600 min-1

Water Environment

Flow Rate 0.15 m/sec.( 0.5 ft/sec. )
PH Level 6.5 - 8.0
Maximum Temperature 5 - 40HP 35℃ ( 95℉ )
50 - 60HP 25℃ ( 77℉ )

Service Factor

Service Factor
Mortor		 1.15 1.0
6" 5 - 30HP 220,230V/60Hz
380,440,460V/60Hz		 208V/60Hz
380,400,415V/50Hz
6" 40 - 50HP 380,440,460V/60Hz 380,400,415V/50Hz
6" 60HP 380,440,460V/60Hz —
Size and Weight

2POLE

Motor Size Phase Output D L Net Weight
HP kW mm (inch) mm inch kg lbs.
6" 1 5 3.7 140 (5.51) 685 26.97 50 110
7.5 5.5 760 29.92 58 128
10 7.5 760 29.92 58 128
15 11 850 33.46 67 148
3 5 3.7 583 22.95 43 95
7.5 5.5 630 24.80 45 99
10 7.5 685 26.97 50 110
15 11 760 29.92 58 128
20 15 800 31.50 62 137
25 18.5 920 36.22 73 161
30 22 970 38.19 80 176
40 30 1060 41.73 90 198
50 37 1060 41.73 90 198
60 45 1060 41.73 90 198

Cable Size and Type

Motor Size Phase Output 460V,415V,400V,380V 220V,230V
Lead Wire Size A × B
mm (inch)		 Lead Wire Size A × B
mm (inch)
HP kW mm² AWG mm² AWG
6" 1 5 - 15 3.7 - 11 — — — 5.5 #10 25.1 × 9.6
(0.99×0.38)
3 5 - 25 3.7 - 18.5 5.5 #10 25.1 × 9.6
(0.99×0.38)		 5.5 #10 25.1 × 9.6
(0.99×0.38)
30 22 8.0 #8 27.7 × 10.4
(1.09×0.41)		 8.0 #8 27.7 × 10.4
(1.09×0.41)
40 30 5.5 #10 25.1 × 9.6
(0.99×0.38)		 — — —
50 - 60 37 - 45 8.0 #8 27.7 × 10.4
(1.09×0.41)		 — — —
Construction

Features

Plug-in type lead connection

All 6" motor leads are stranded copper, extremely flexible,
3.8m(150 inches) in length and field replaceable.

Durable Insulation

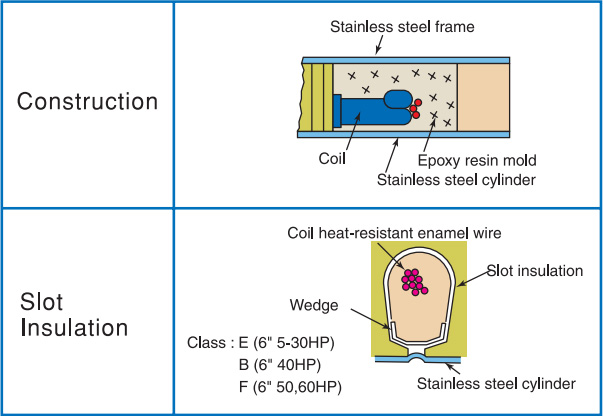

The motor stator coil of the canned type is mounted in a stainless steel frame and is completely sealed in a protective stainless steel cylinder. Complete water proofing insures long life for the moisture resistant insulation.

Excellent heat resistance

Strength against thermal flucuation and internal mechanical stress is assured by the use of a patented "Hi-canned Resin". The space between the stator, stainless steel protective can and frame is filled with this epoxy resin, allowing faster and greater heat dissipation resulting in longer motor life.

Insulation

35°C(95°F)Water temperature(6", 5 - 40HP)

The Hitachi motors operate with a flow rate 0.15m/sec.(0.5ft/sec.) in water temperature up to 35°C(95°F) without any derating of horsepower. This 35°C(95°F) temperature is 10℃(18°F)higher than NEMA standards.

High-performance thrust bearing

The well established KINGSBURY design thrust bearing creates a wedge of water between the pivot shoe and carbon disc. Our innovative design permits hign thrust loads to be placed on the bearings while showing no measurable wear after several years of severe duty operation. This allows for long pumping life, virtual troble free operation and low maintenance. For all 6" motors, the 136kg. maximum continuous up-thrust is absorbed between the upper carbon sleeve bearing and the rotor balance ring.

Motor Size 2 Pole
Down Thrust Up Thrust
kN lbs. kN lbs.
6" 5 - 30HP 15.5 5,000 1.3
*(2.0)		 300
*(450)
6" 40 - 60HP 22.2 5,000 1.3
*(2.0)		 300
*(450)
  1. Thrust ratings showed are continuous except for values marked*.
  2. *Momentary rating (3minutes Max).
