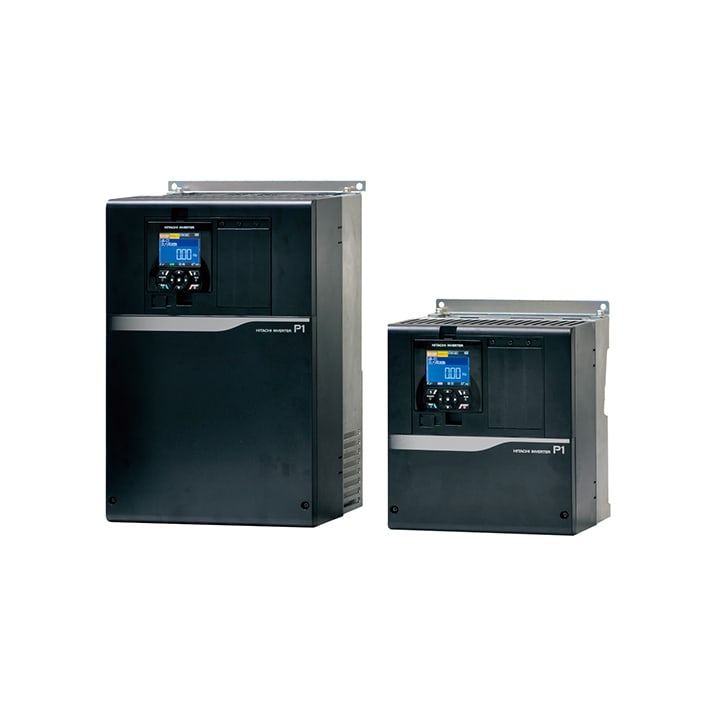

Variable Frequency Drives SJ series P1 By Hitachi Industrial Equipment Systems Co., Ltd.

Specifications

Applicable motor capacity by rating

Overload current rating

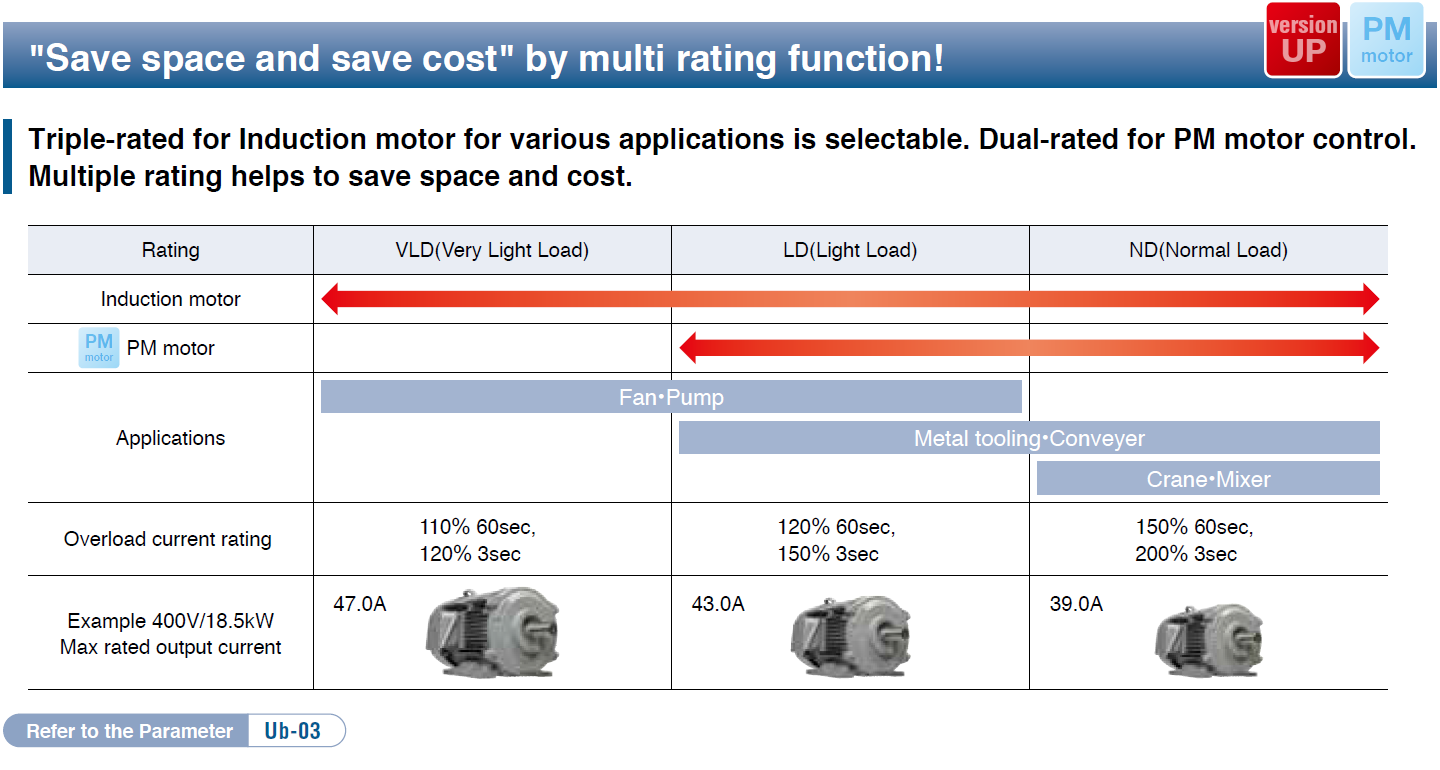

VLD(Very light duty):110% 60sec,120% 3sec
LD(Light duty):120% 60sec,150% 3sec
ND(Normal duty):150% 60sec,200% 3sec

200V class specifications Open in new tab

400V class specifications Open in new tab

Common specifications Open in new tab

Main Circuit Terminals Open in new tab

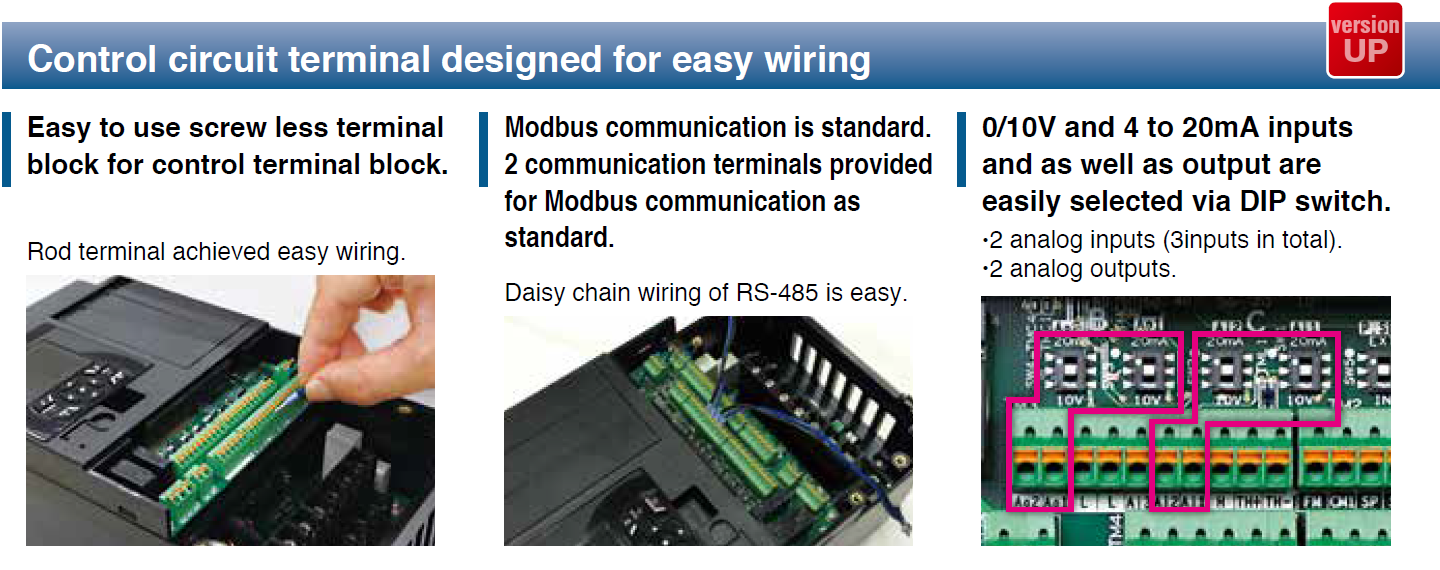

Control Circuit Terminals Open in new tab

Protective Functions Open in new tab

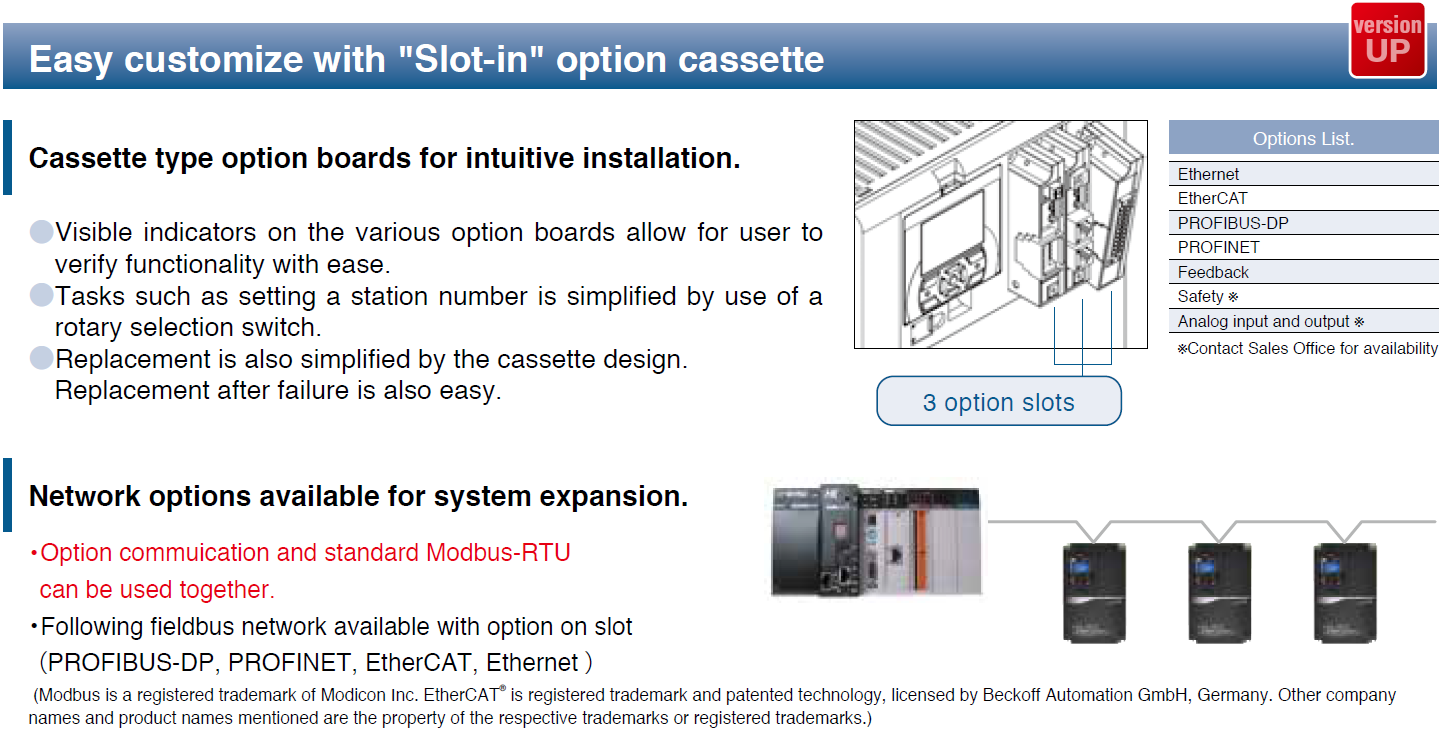

Option Cassette Open in new tab

Lineup

Available

Applicable motor(kW)	0.4	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160	185	200	220	250	315
3-phase 200 V(ND rating)	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	-	-	-	-	-	-	-	-	-	-
3-phase 400 V(ND rating)	-	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎	⚫︎

The applicable motor refers to Hitachi standard 3-phase motor (4-pole).
To use other motors, be sure to prevent the rated motor current (50Hz) from exceeding the rated output current of the inverter.

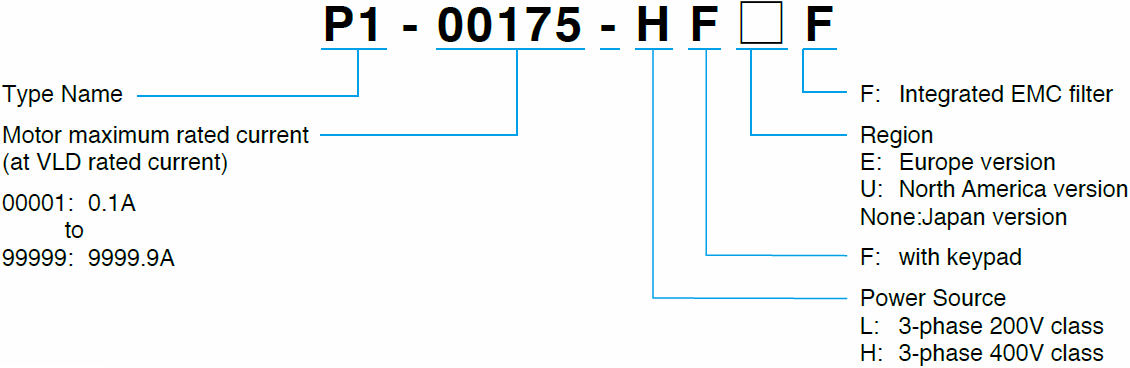

SJ series model name indication

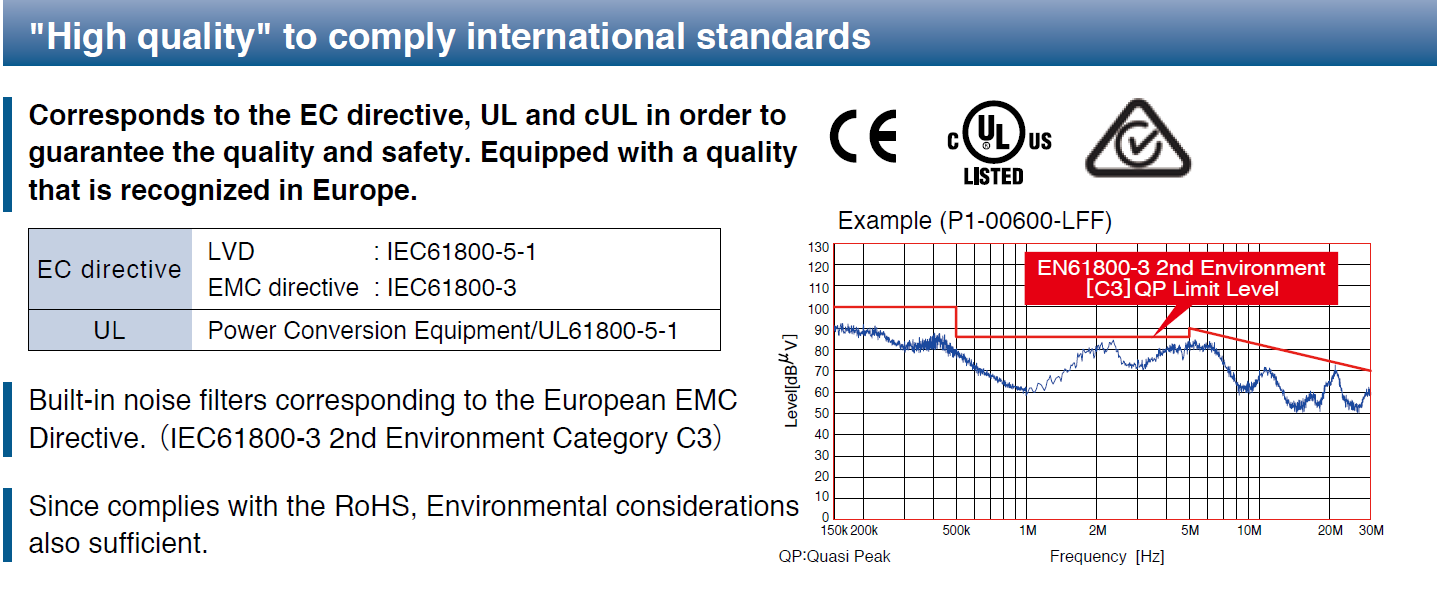

Features

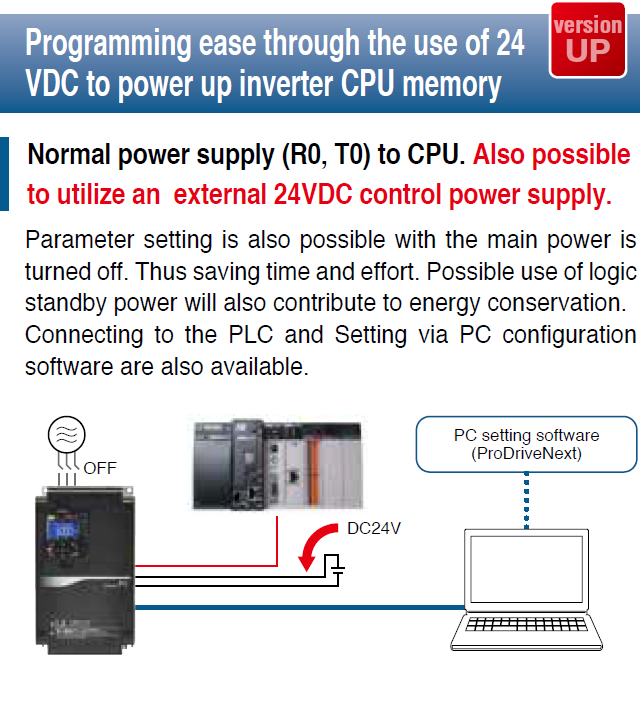

Easy access to all the functionality

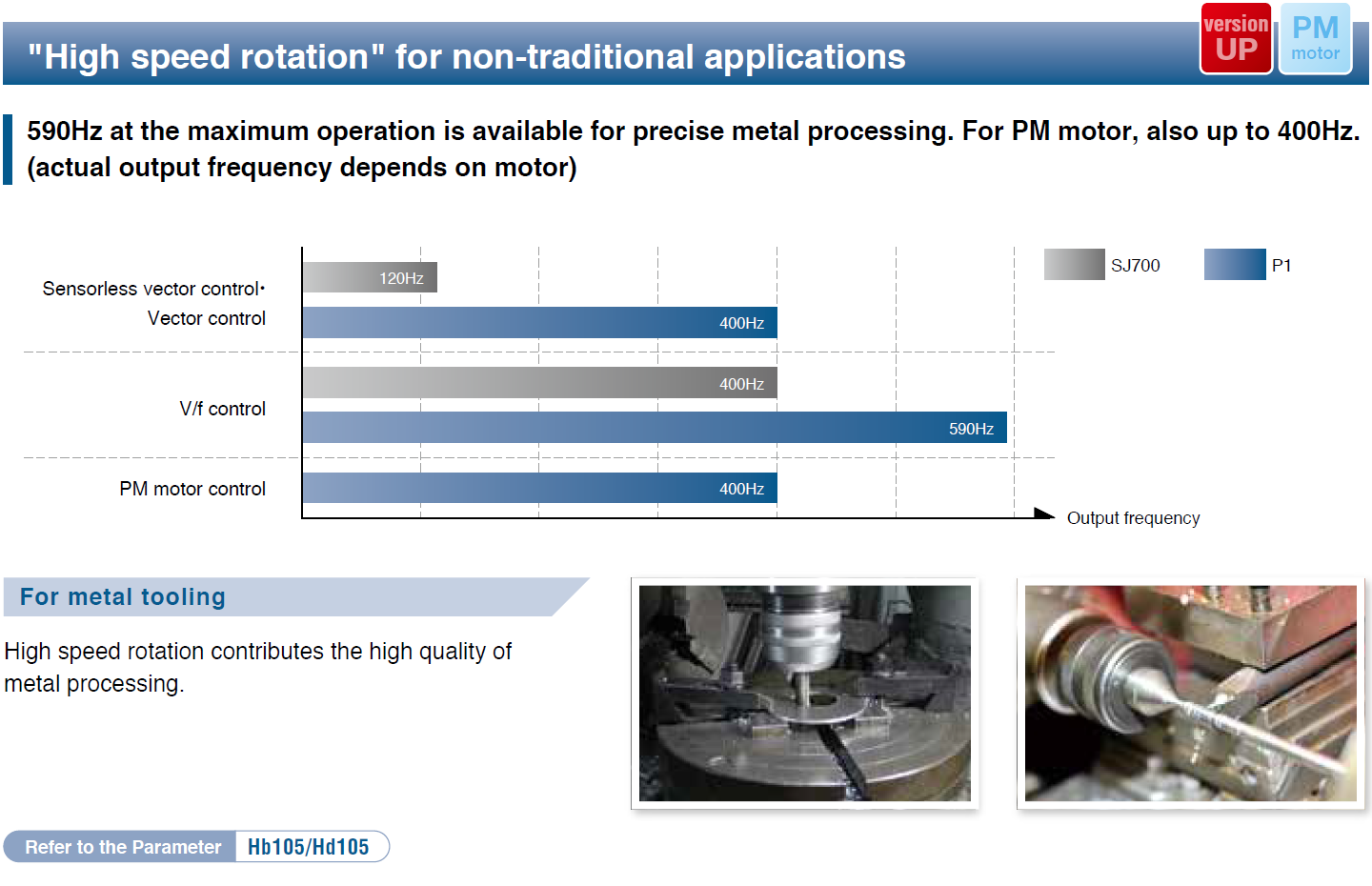

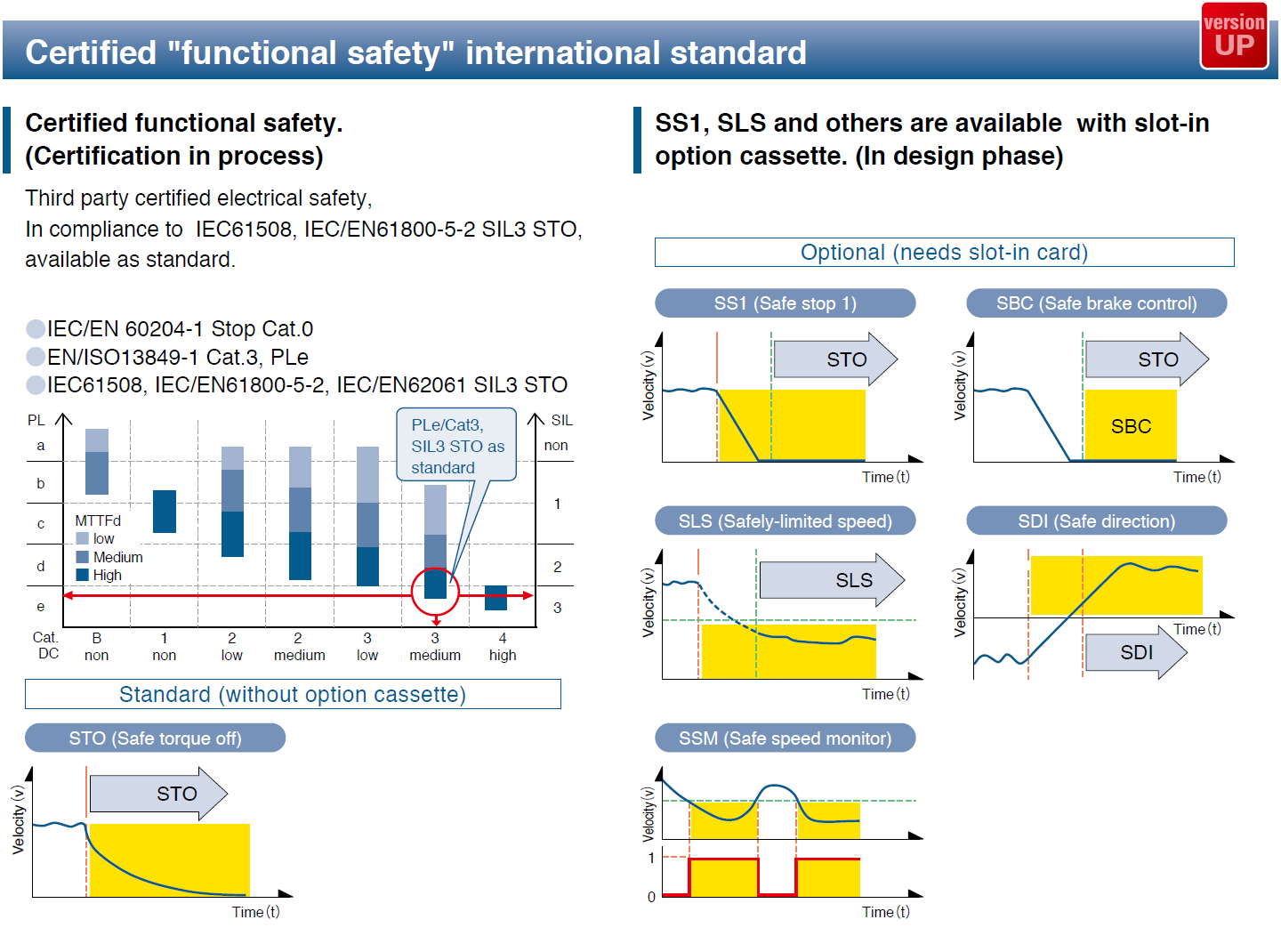

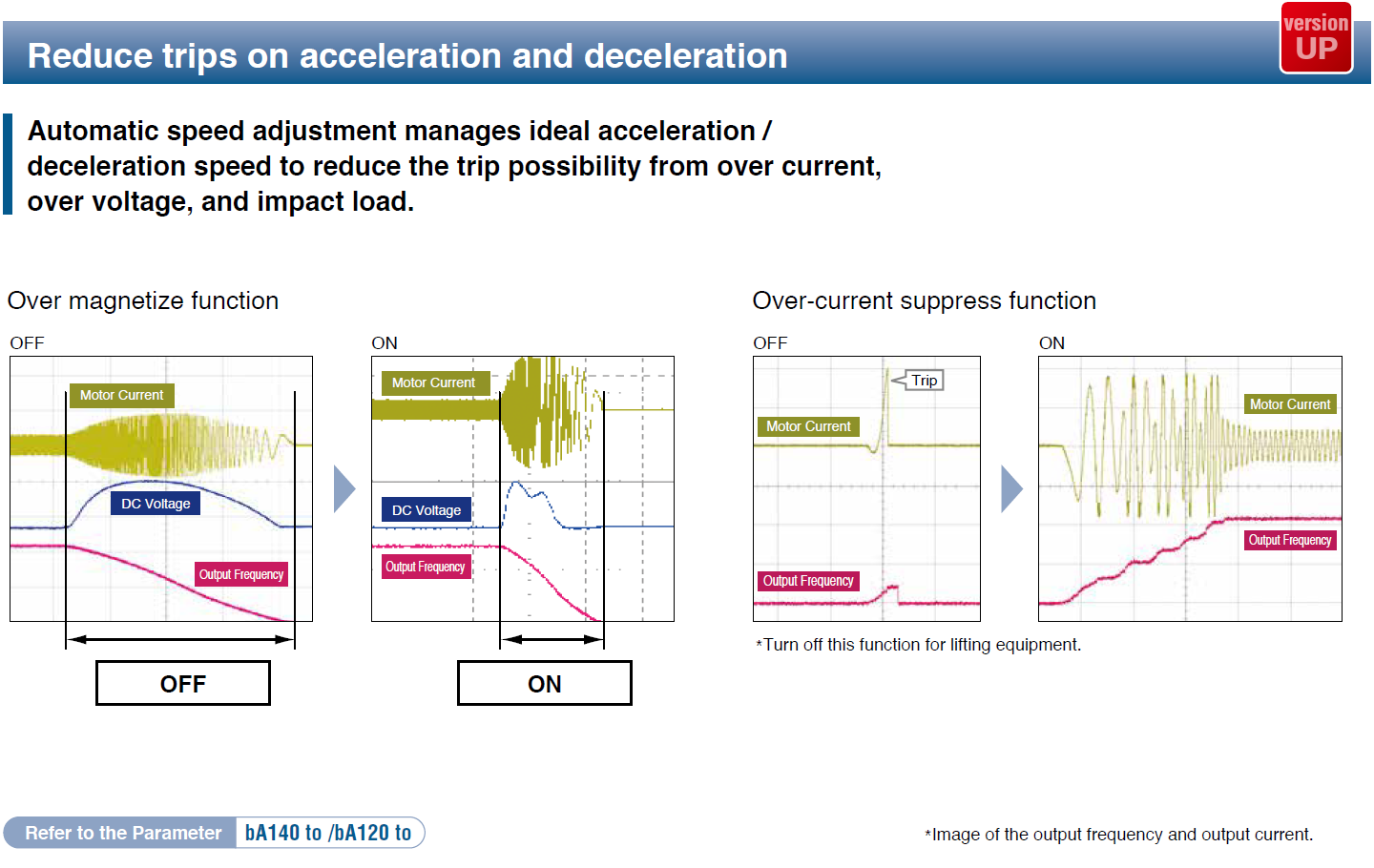

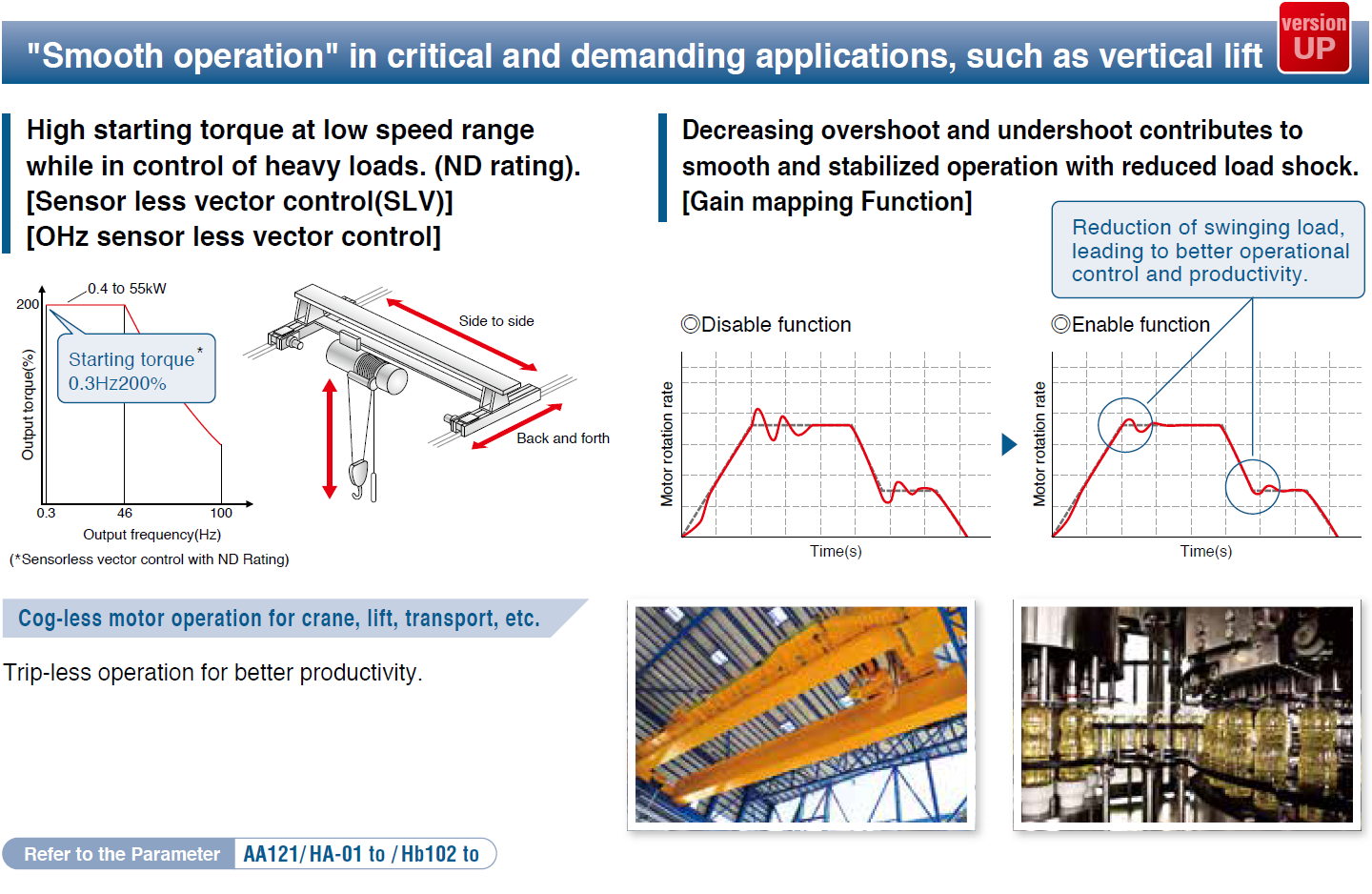

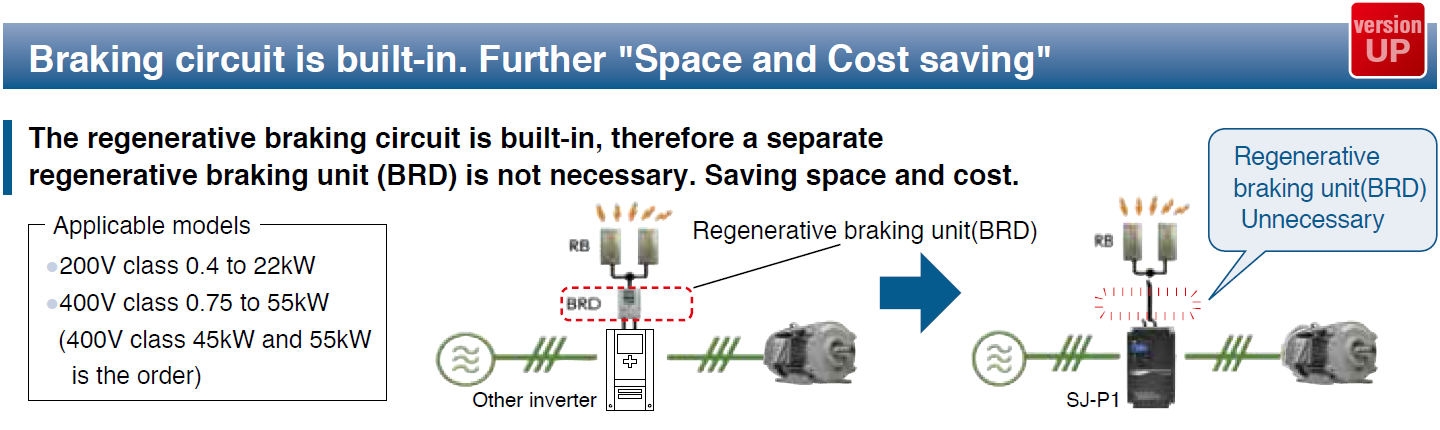

A High Performance drive for the most demanding of applications

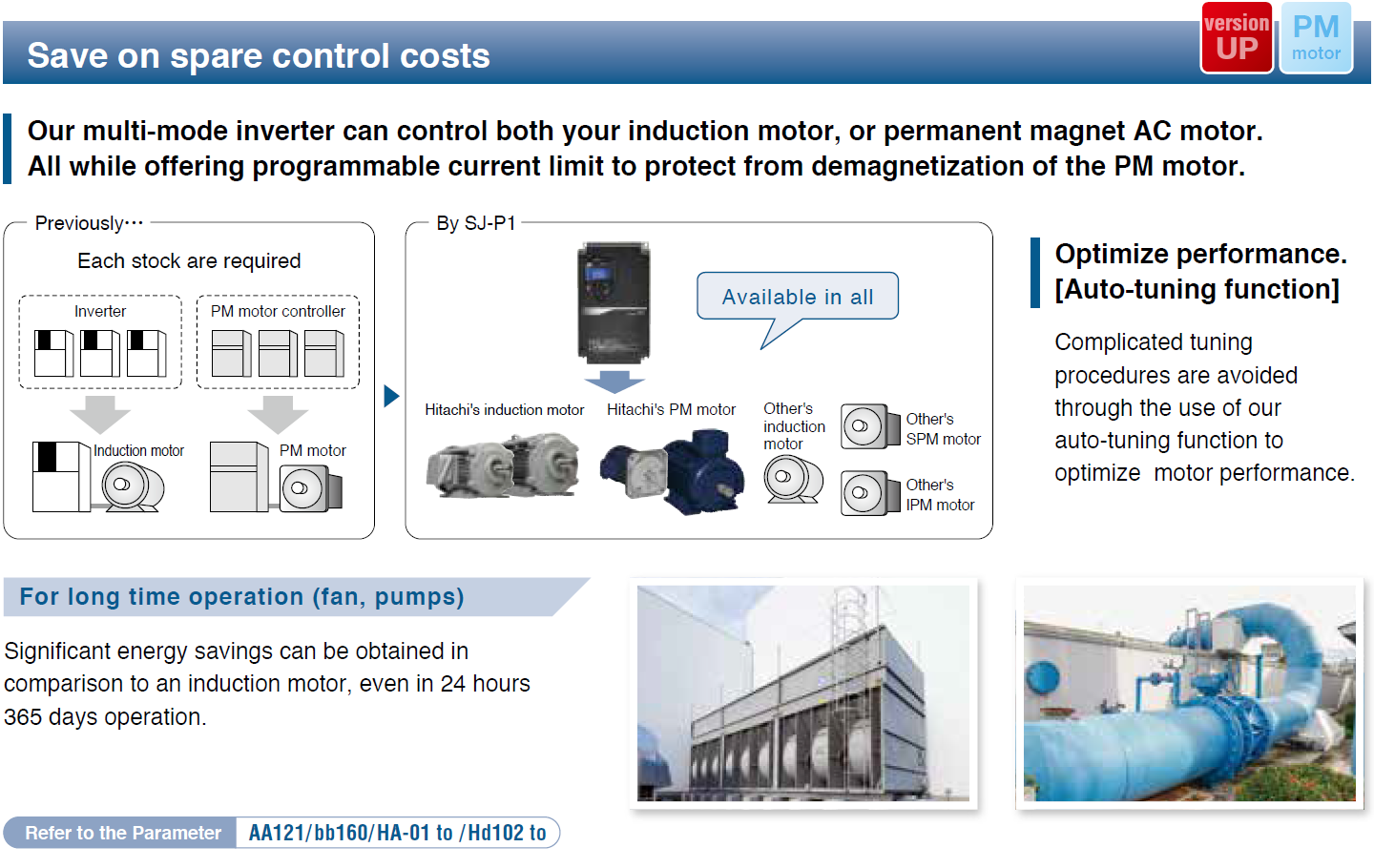

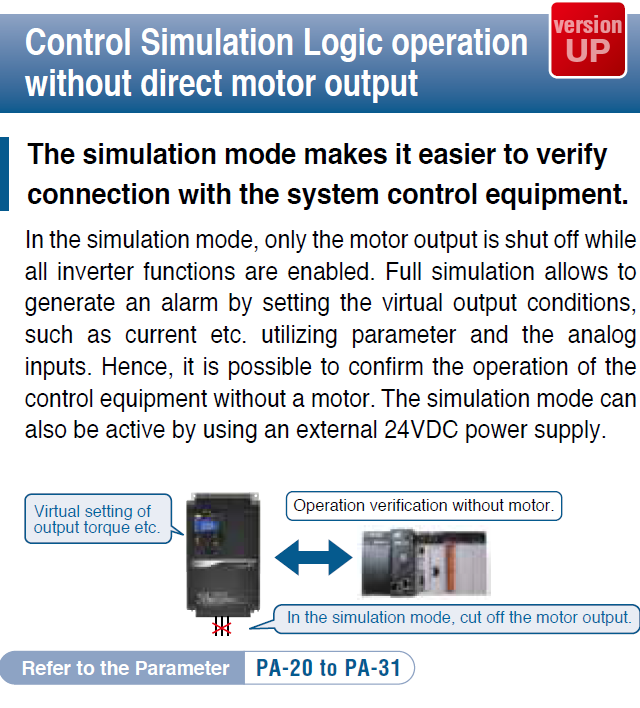

Versatility through multi mode operation, to meet your specific application needs

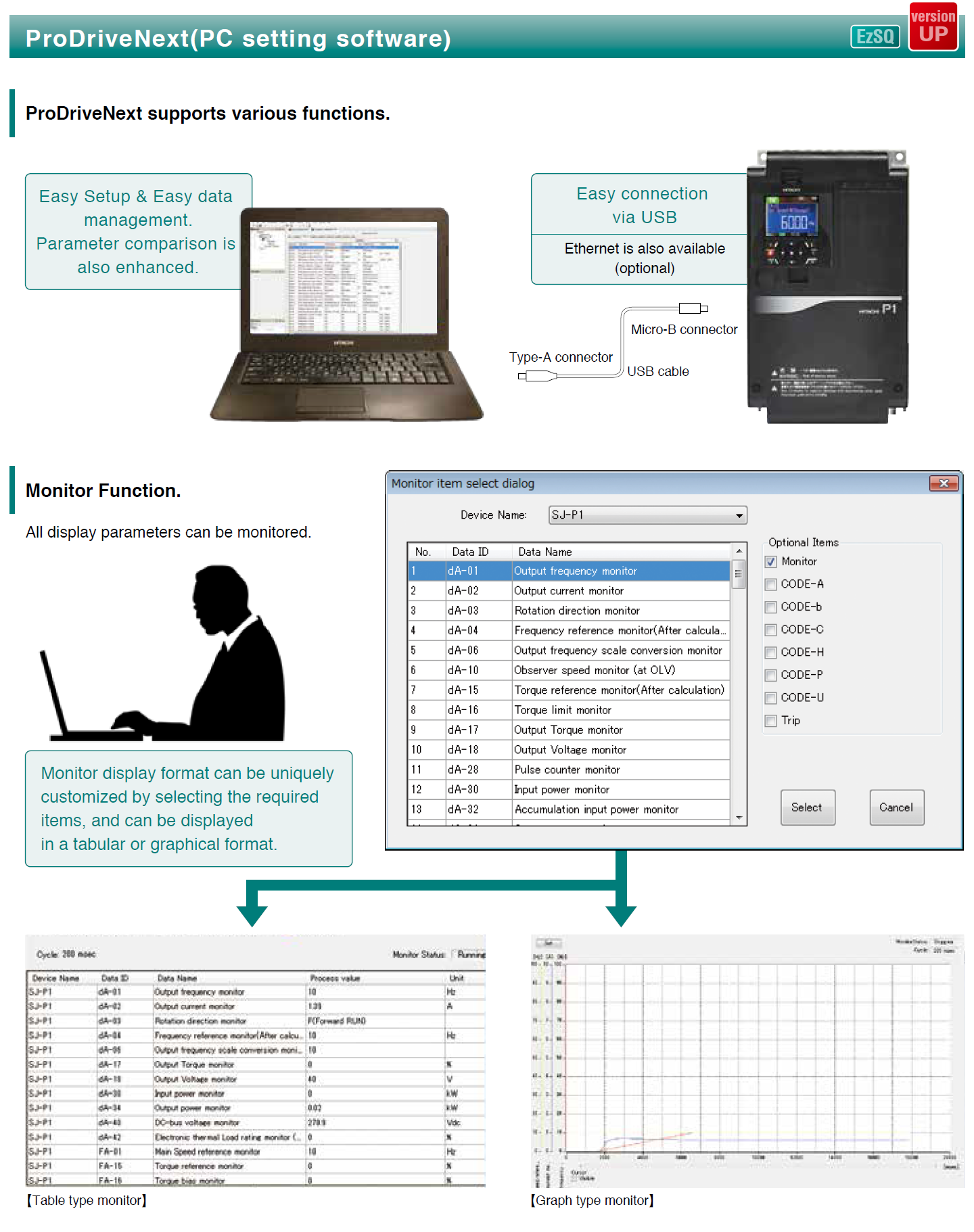

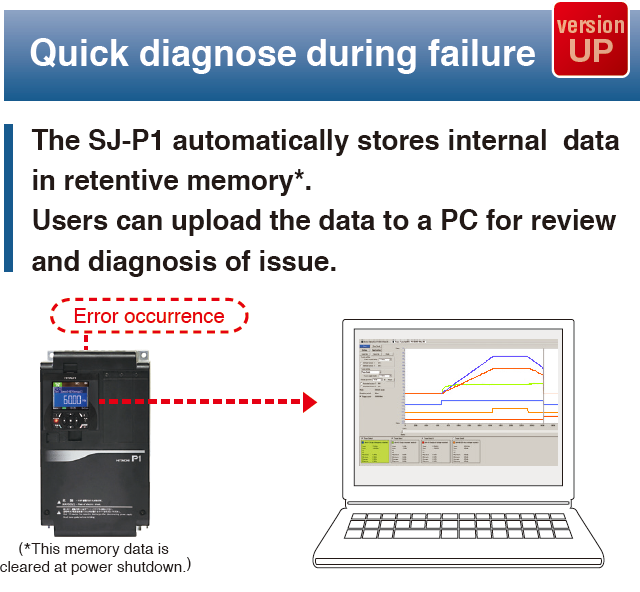

Hitachi's ProDriveNext Software

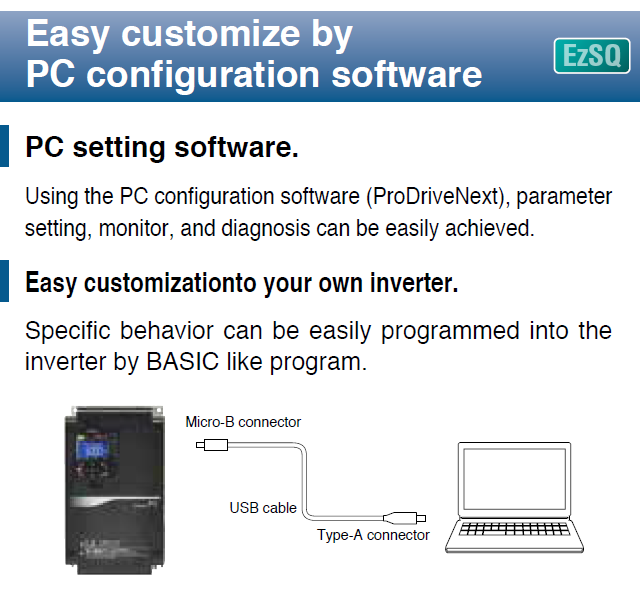

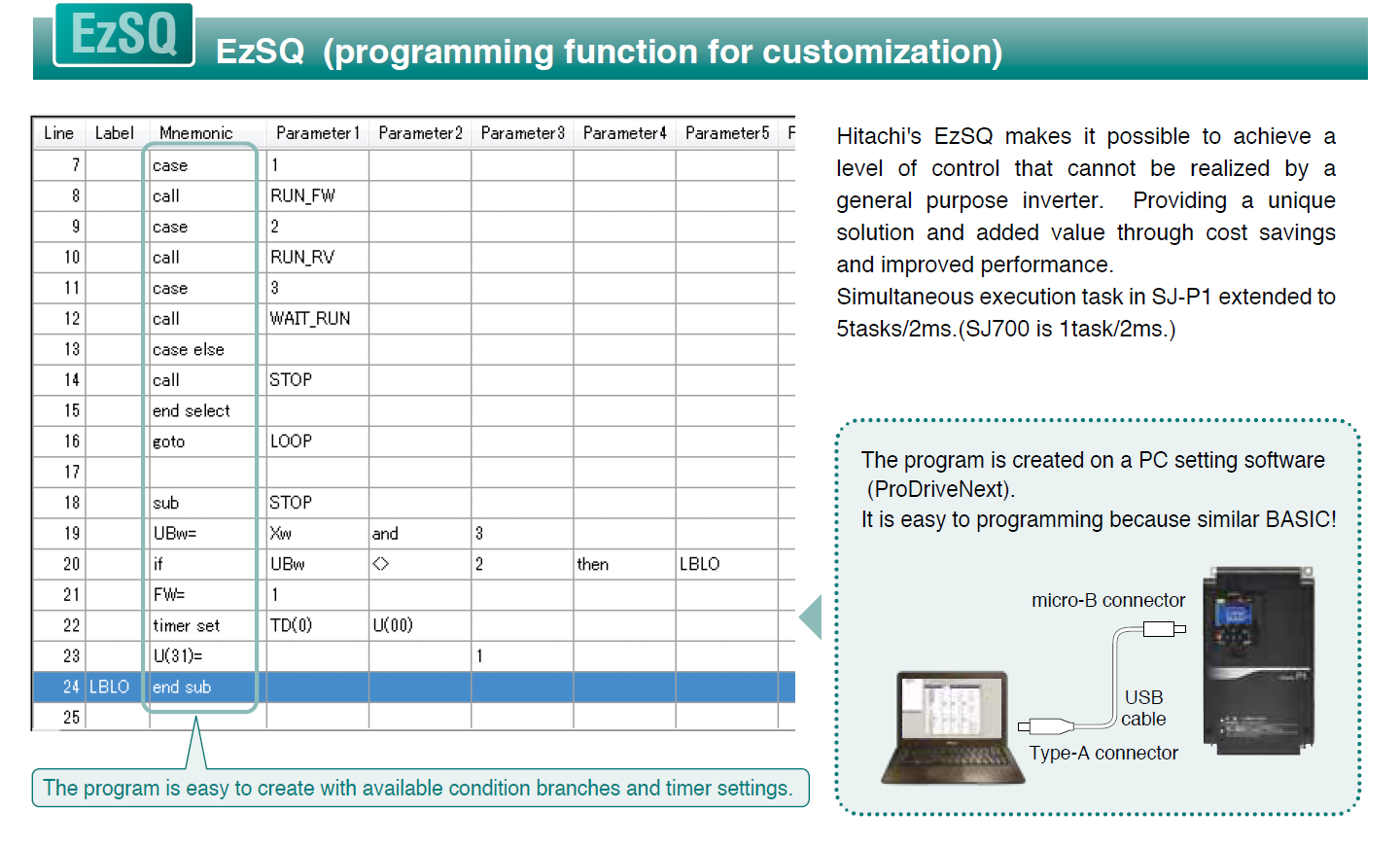

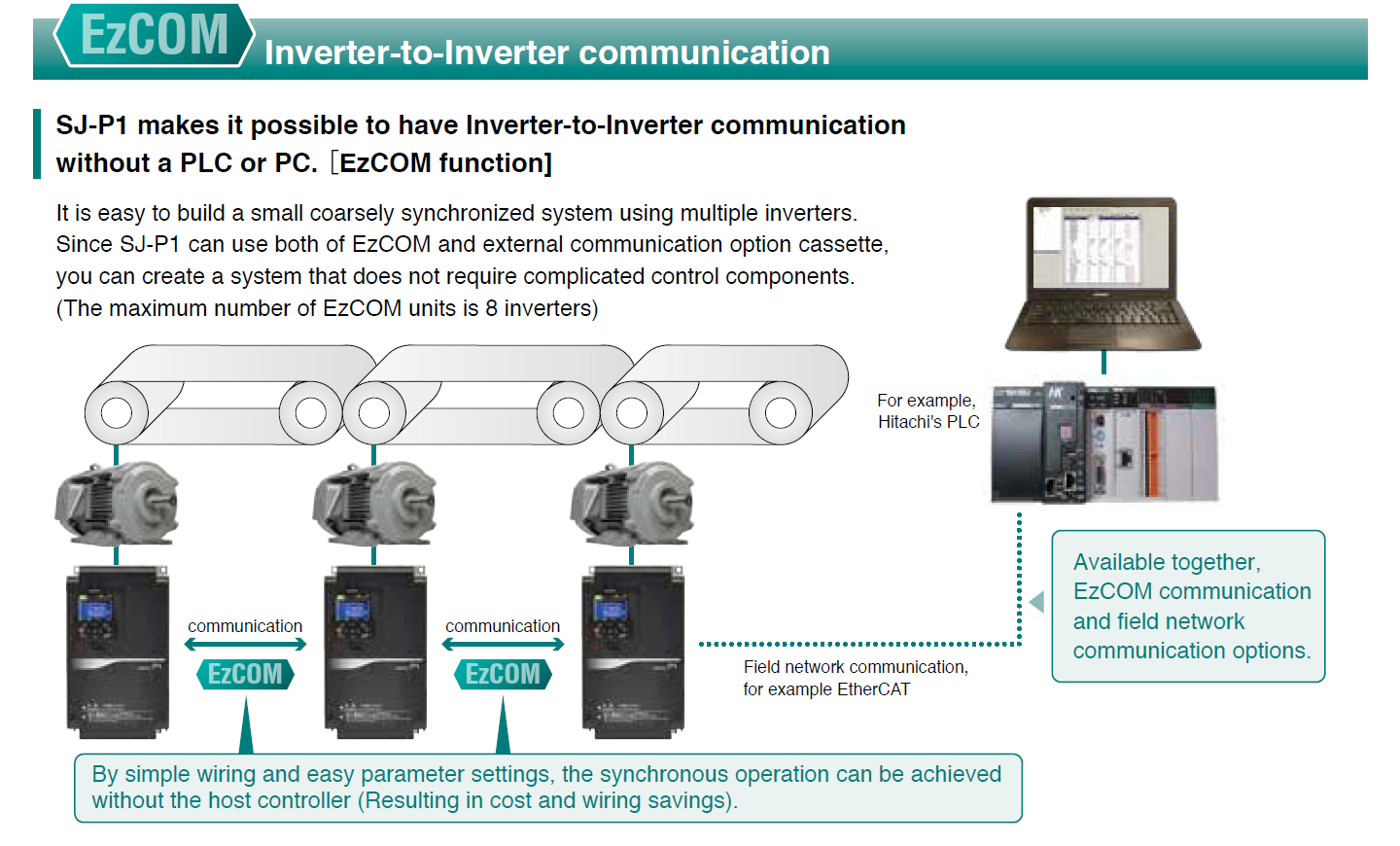

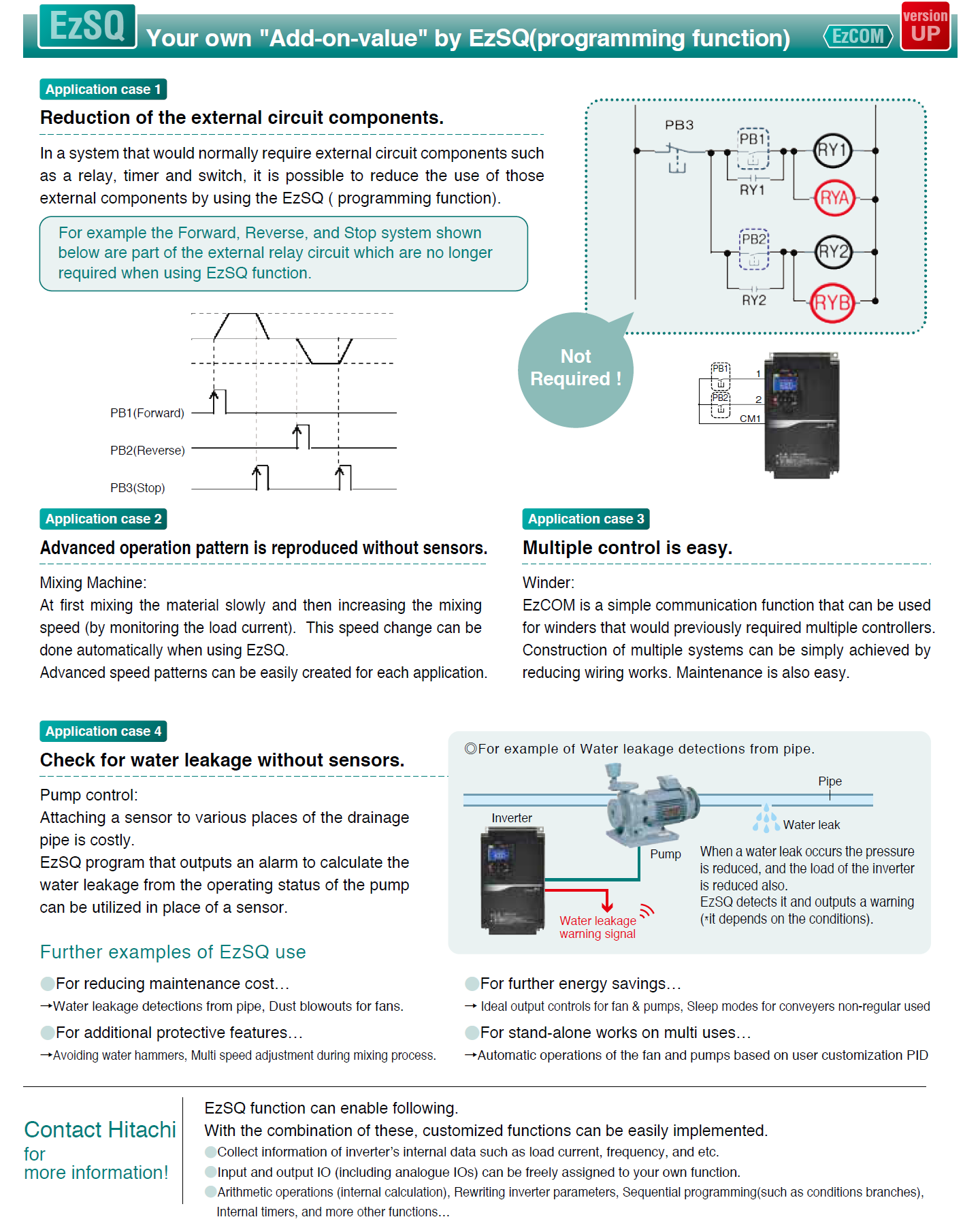

Easily Customizable (EzSQ and EzCOM)

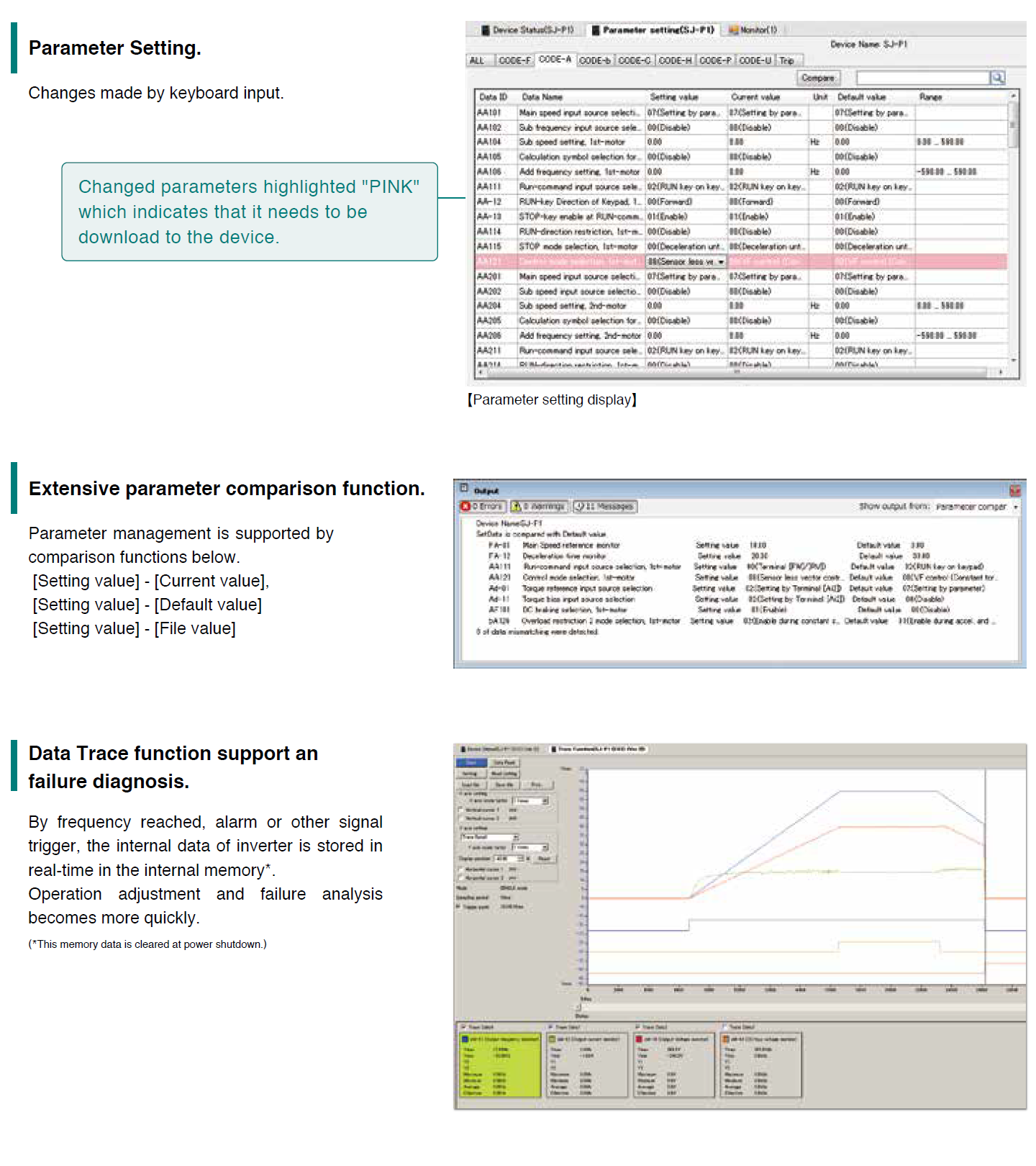

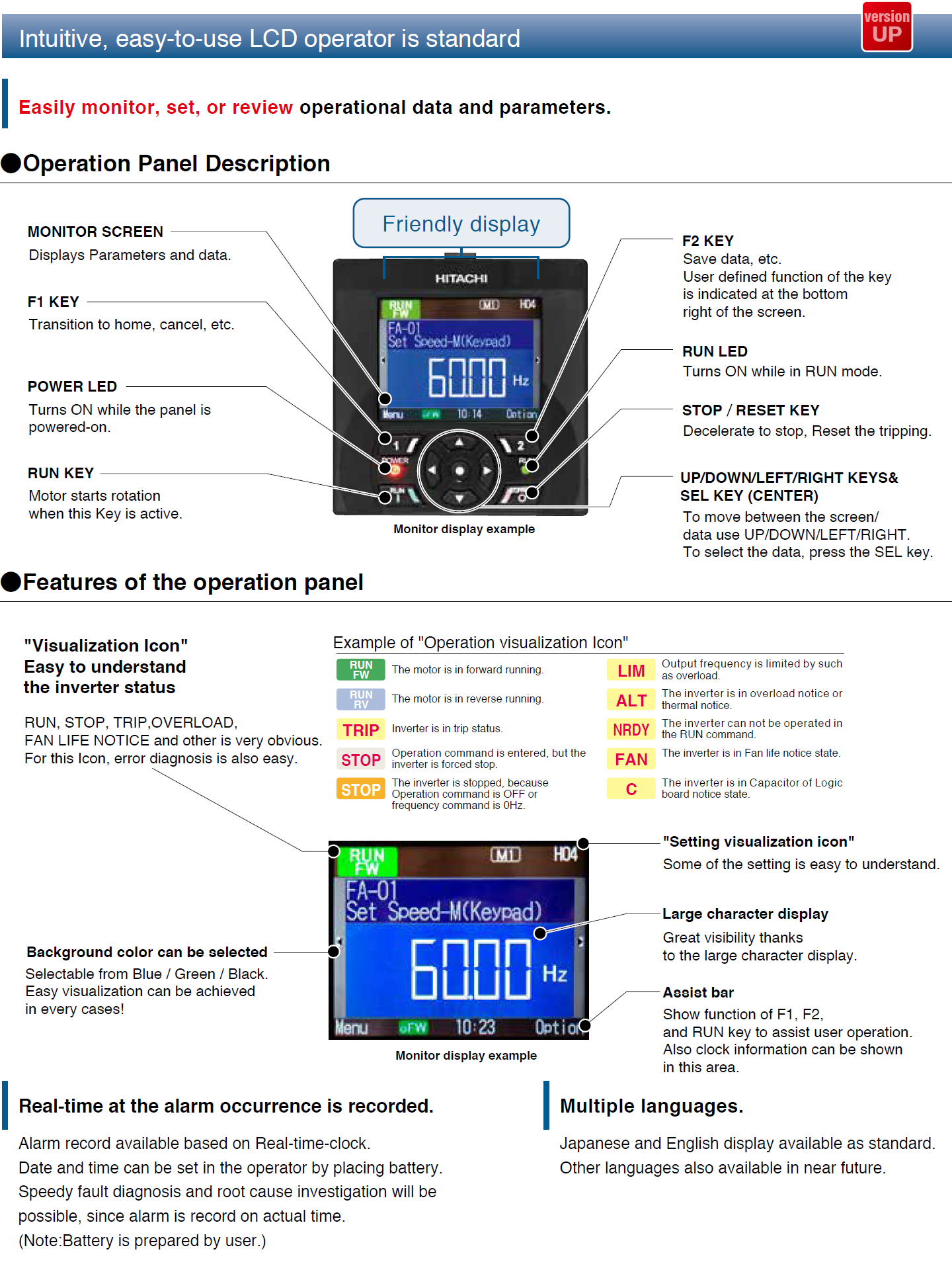

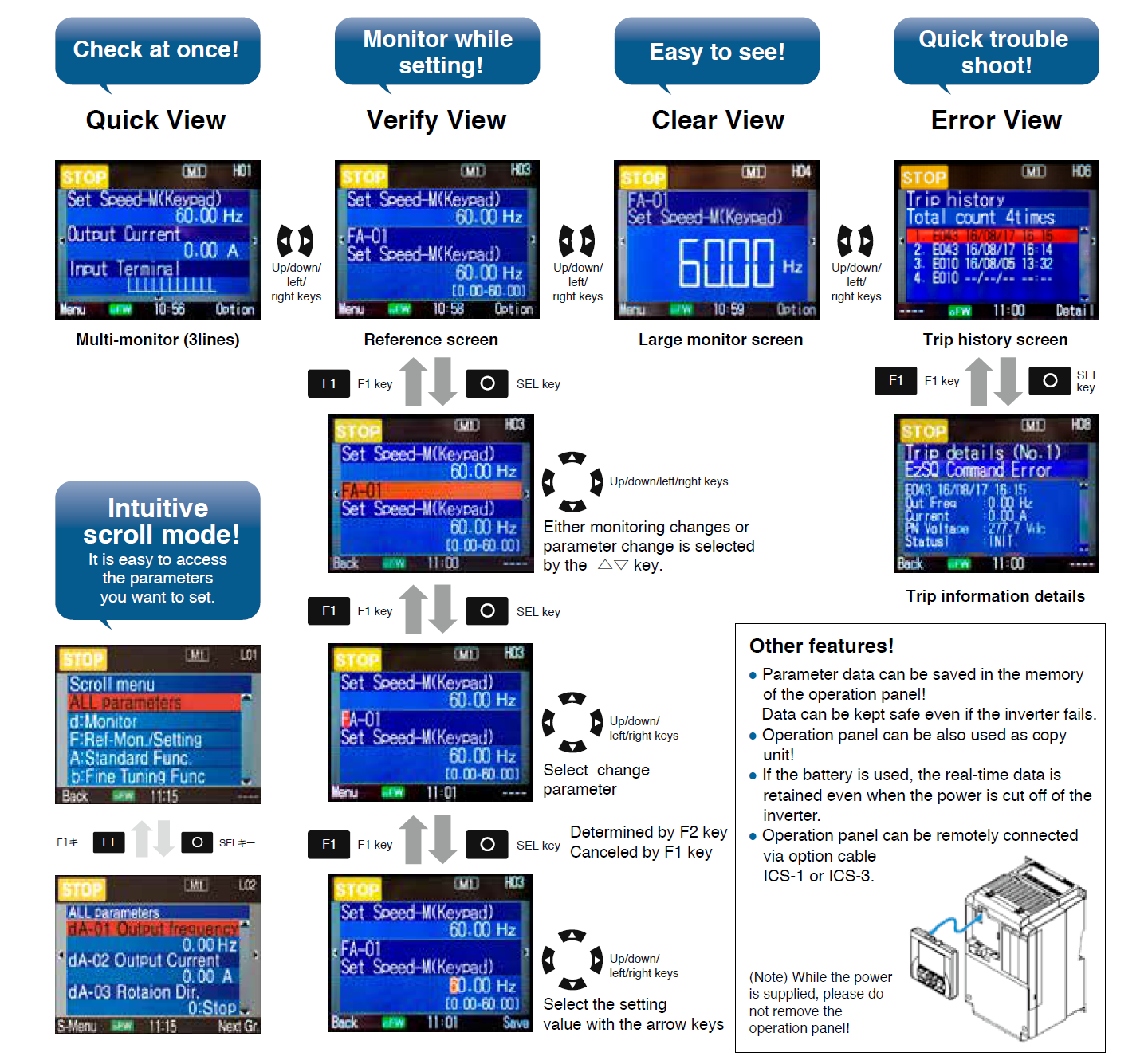

Example of main screen transition and parameter setting

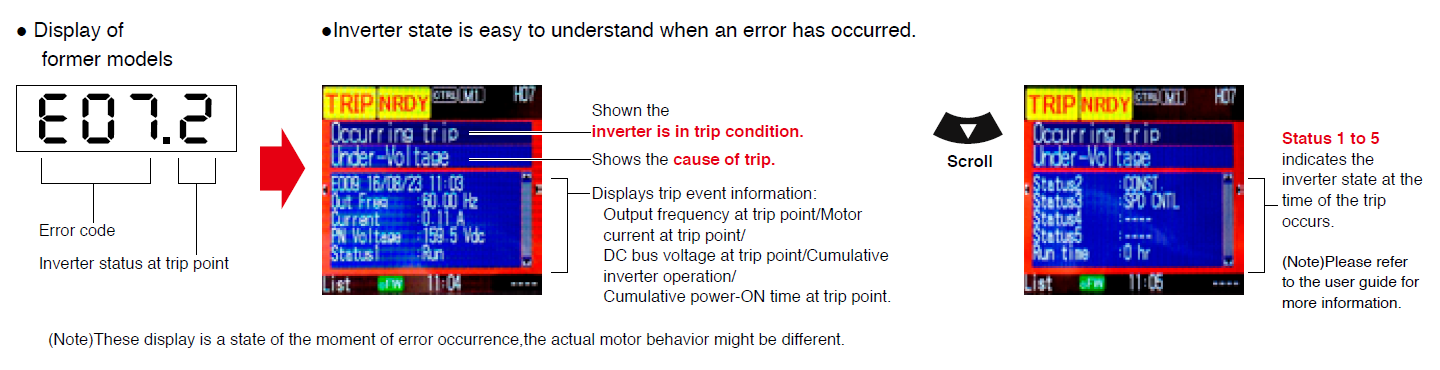

Trip monitor

Demensions

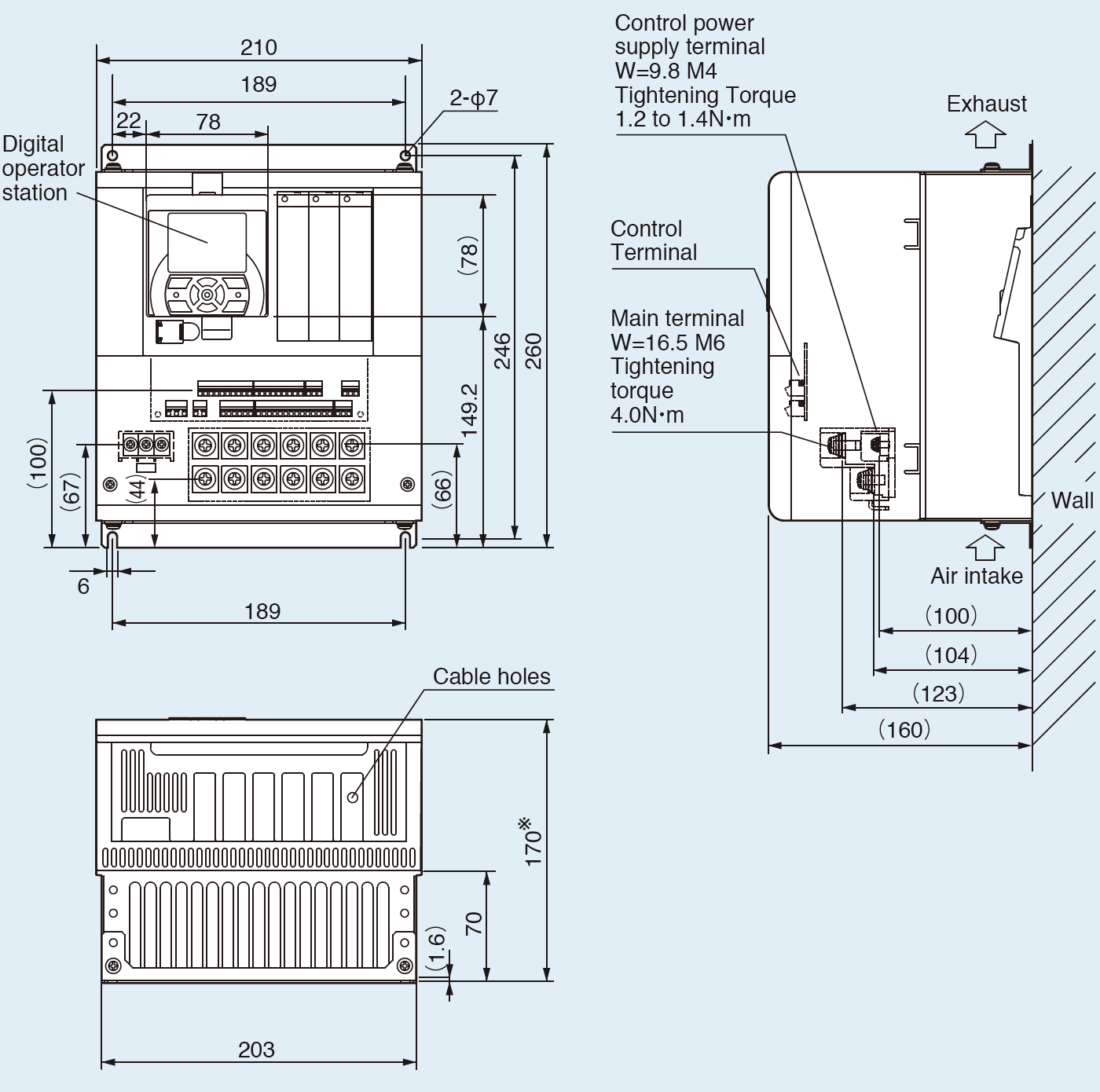

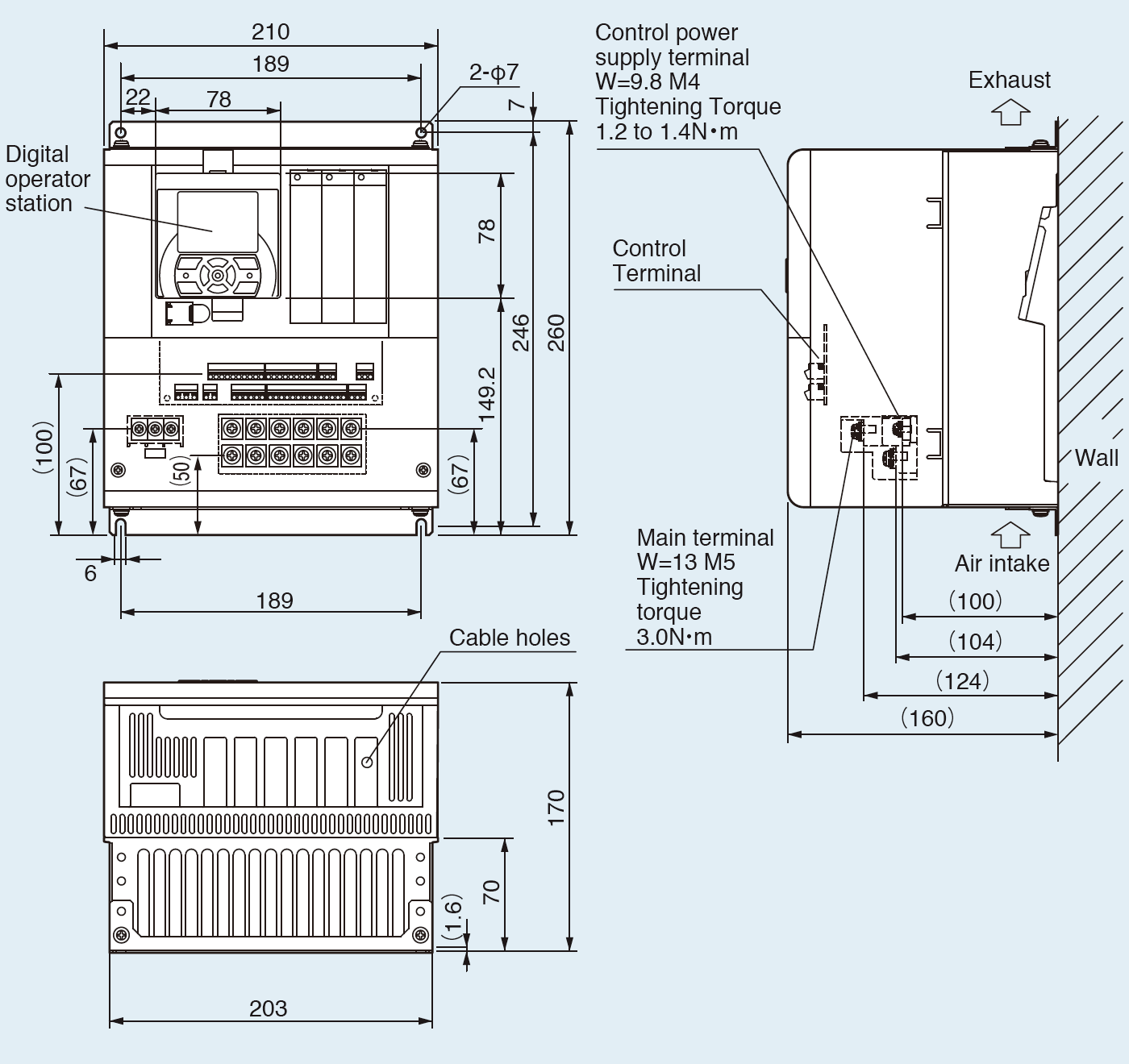

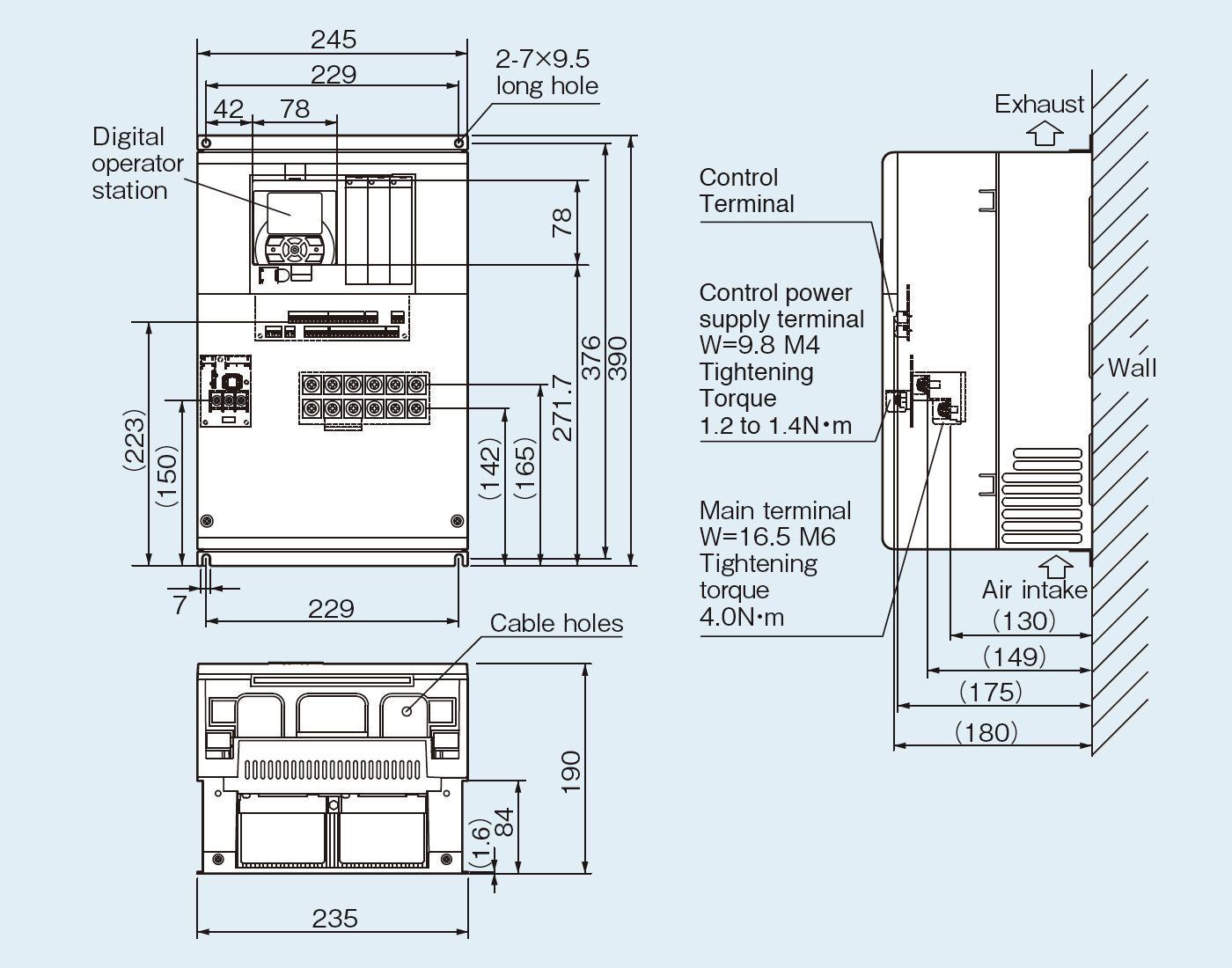

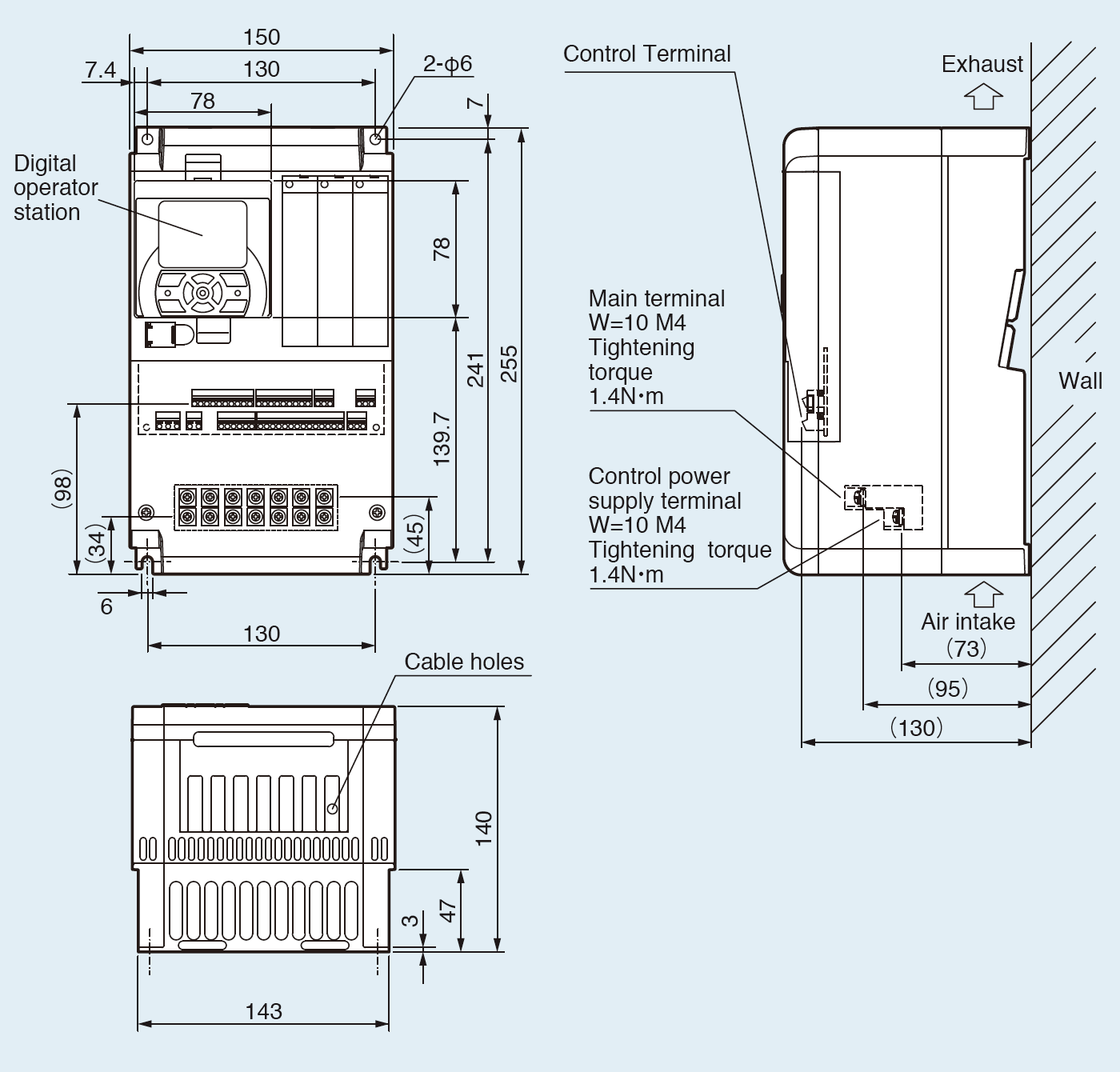

P1-00044-LF☐F - 00228-LF☐F / P1-00041-HF☐F - 00126-HF☐F

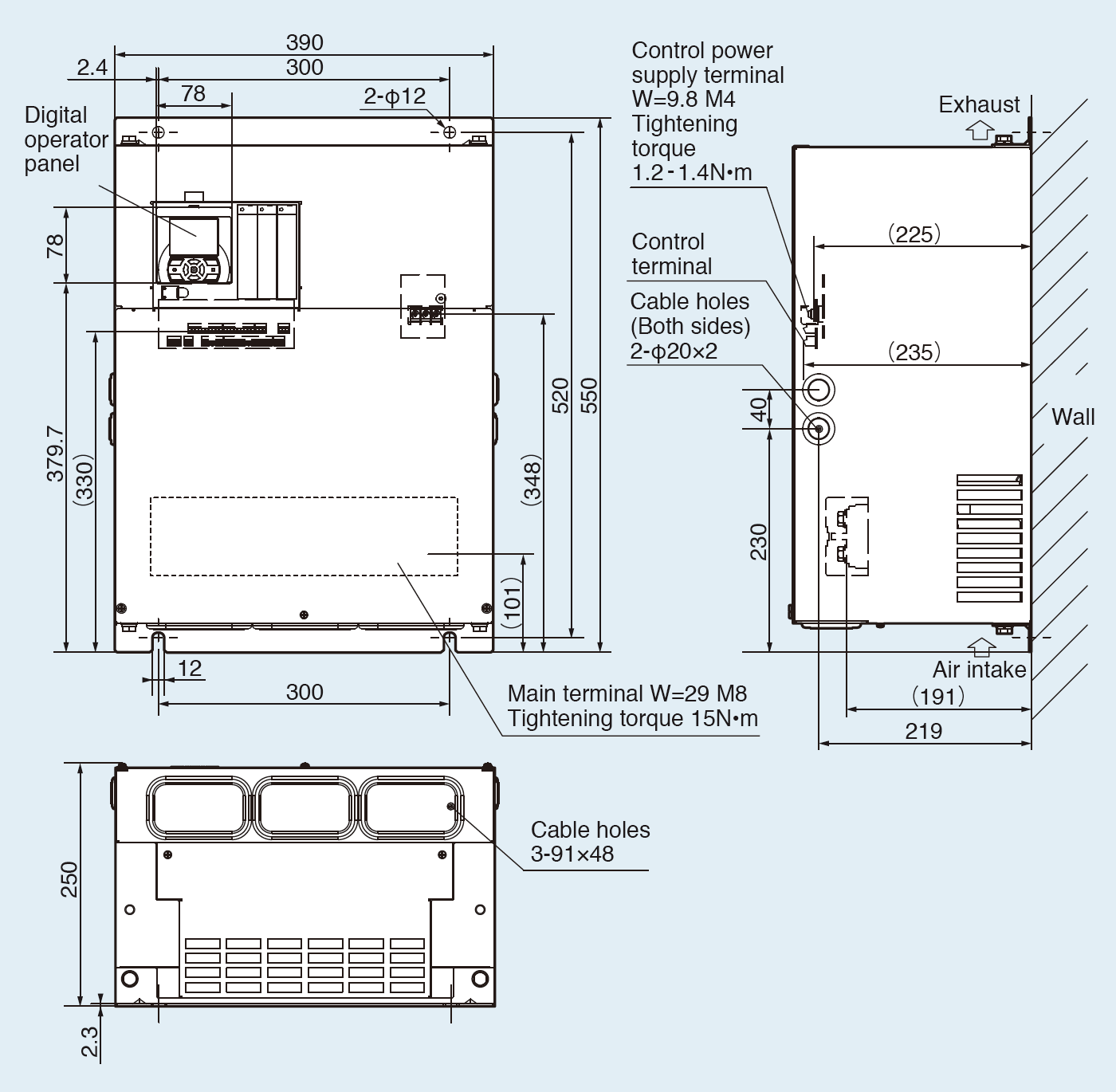

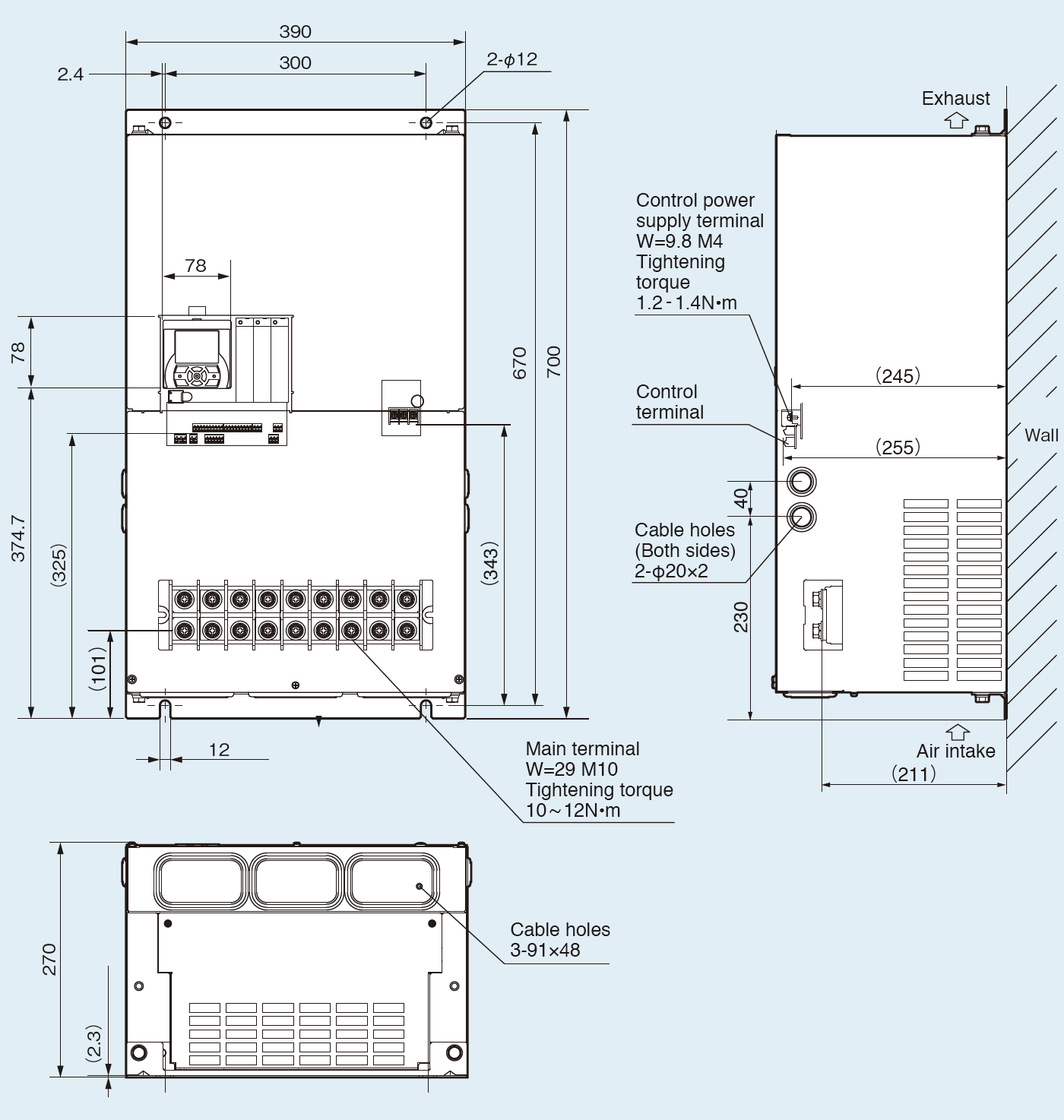

P1-00330-LF☐F, P1-00460-LF☐F / P1-00175-HF☐F, P1-00250-HF☐F

P1-00600-LF☐F / P1-00310-HF☐F

When using P1-00600-LFF with LD/VLD rating, the dimension D increases by 15mm.

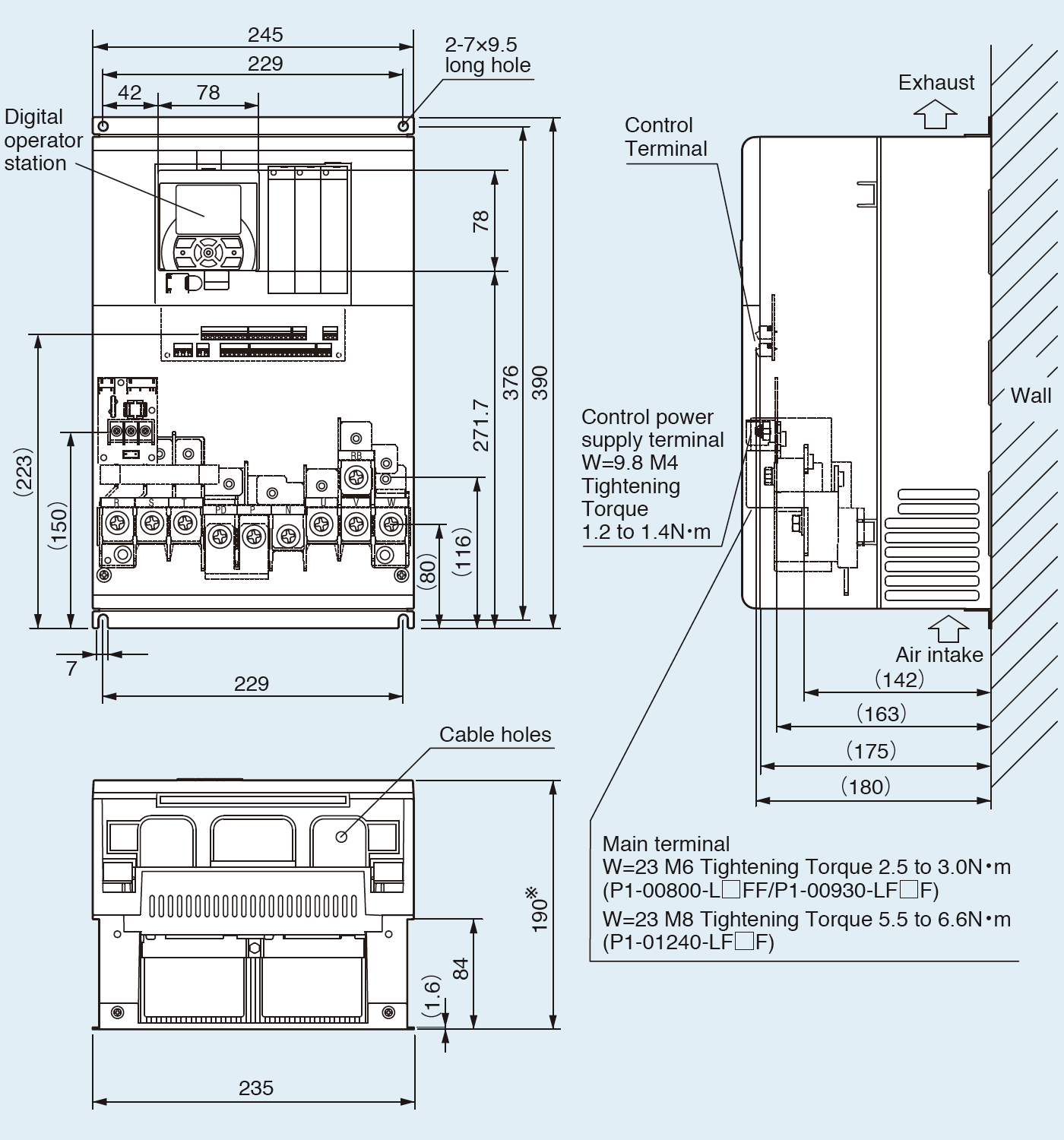

P1-00800-LF☐F, P1-00930-LF☐F, P1-01240-LF☐F

When using P101240-LFF with VLD rating, the dimension D increases by 10mm.

P1-00400-HF☐F, P1-00470-HF☐F, P1-00620-HF☐F

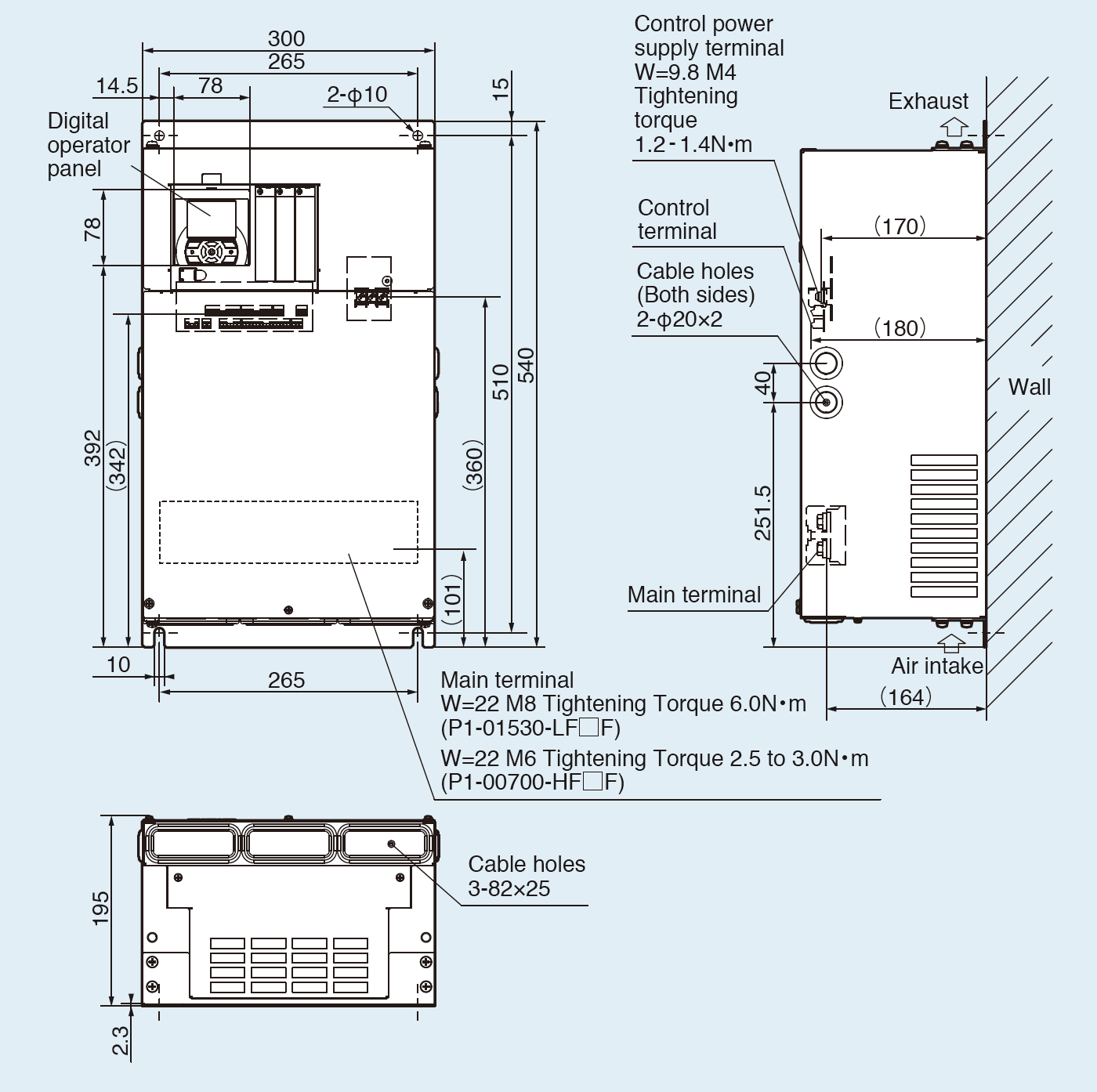

P1-01530-LF☐F / P1-00770-HF☐F

P1-01850-LF☐F, P1-02290-LF☐F / P1-00930-HF☐F, P1-01160-HF☐F, P1-01470-HF☐F

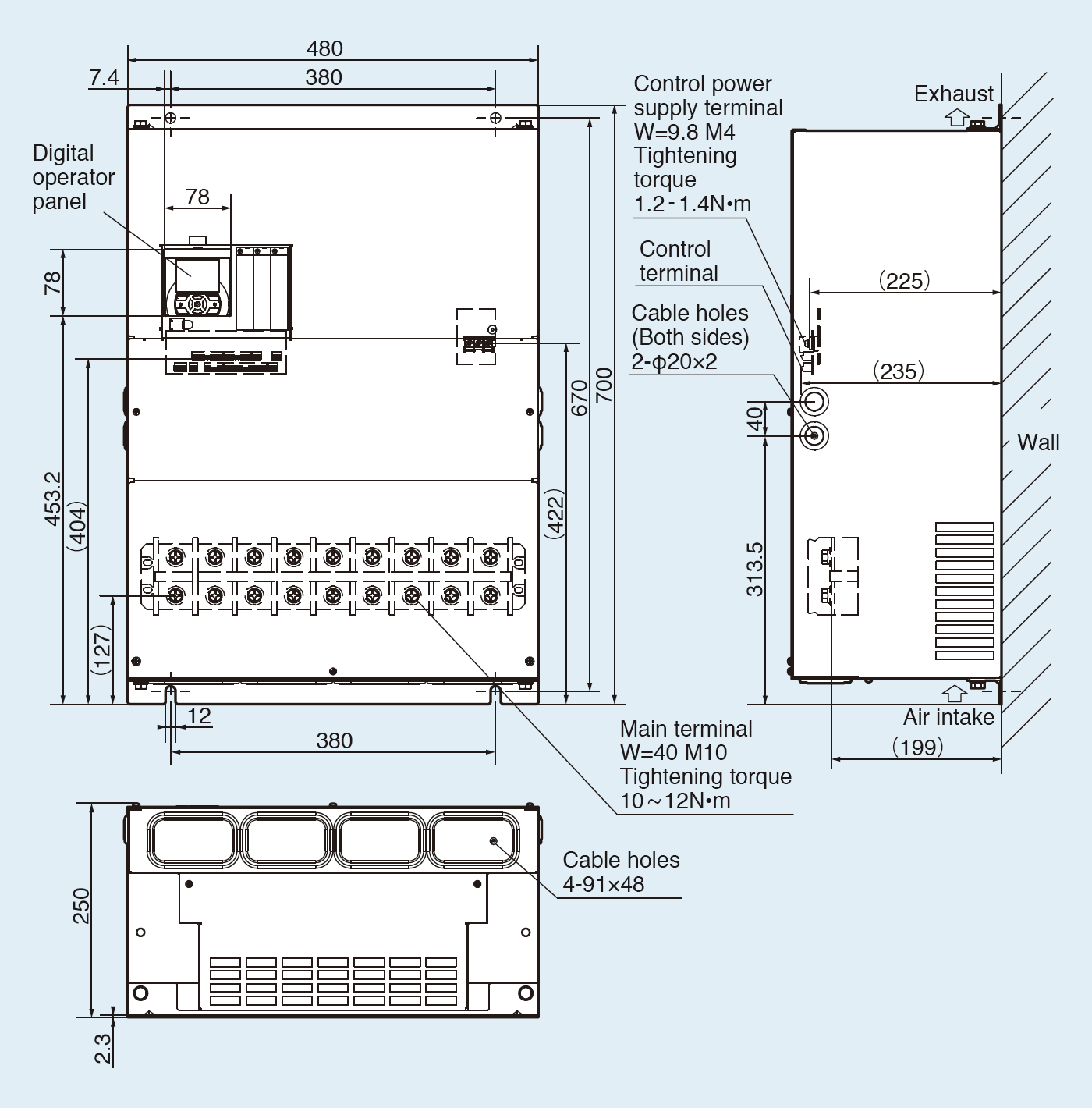

P1-02950-LF☐F

P1-01760-HF☐F, P1-02130-HF☐F

P1-02520-HF☐F, P1-03160-HF☐F
