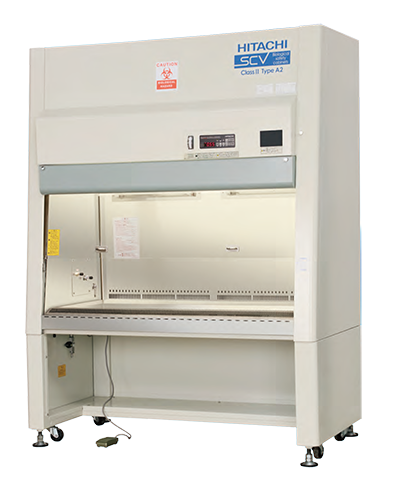

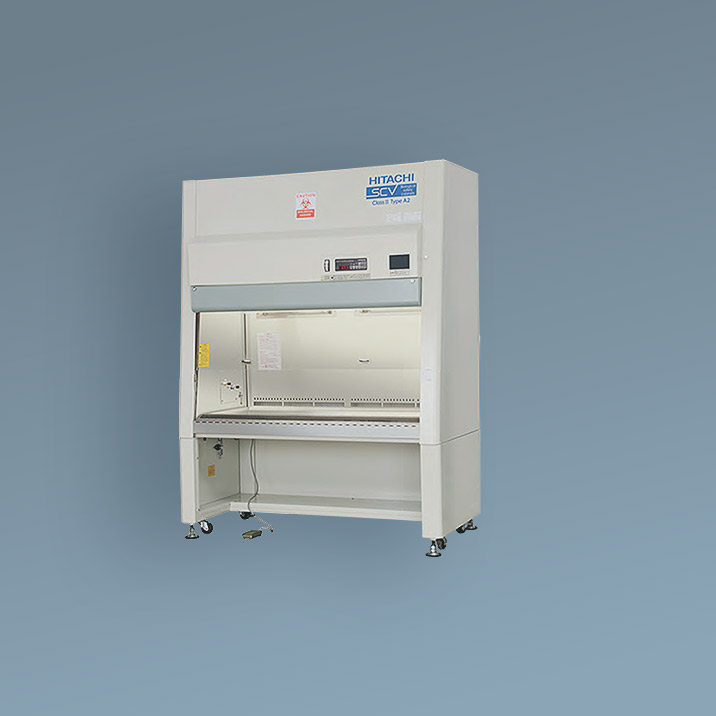

Clean Air EquipmentModel 9, Class II, Type A2

Biological safety cabinet for infection control equipment (safety cabinets) are products designed to ensure worker safety and minimize contamination. In the event of a sudden outbreak of a new virus or unknown bacterium, these products are essential for the handling of samples for PCR tests and other procedures. The cabinet has two options for the working opening height: 250 mm or 200 mm. The area that aerosols are blown backward into has been expanded, improving contamination suppression.

•

  Featured

  Click here for information about the Maintenance Pack

  Class II Biological safety cabinet are important equipment used for the handling of pathogens and other similar materials, so it is essential to perform routine maintenance to ensure their performance. Users must inspect the equipment at least once a year, depending on pathogens that are handled. We recommend you take advantage of the Maintenance Pack provided through an agreement that covers annual inspections.

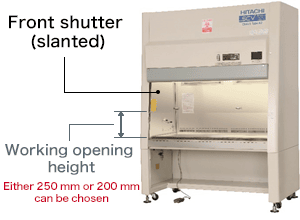

Working opening height

Can be used at either of two options: 250 mm or 200 mm

• Guaranteed wind speed performance when the opening is adjusted to 250 mm or 200 mm and the front shutter is automatically controlled
• If the opening height deviates from 250 mm or 200 mm during use, a buzzer and display indicating "oPEn" will warn the user. This prevents the user from using the equipment in an incorrect way, such as fully opening the shutter or narrowing the opening
  (When the front shutter is fully closed, the display will indicate "CLoS," but the buzzer will not sound.).

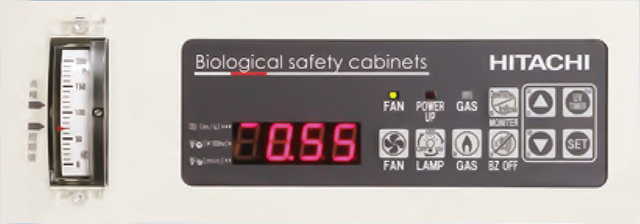

Touch switch panel

• Pictograms are used to enable users to understand operations visually.

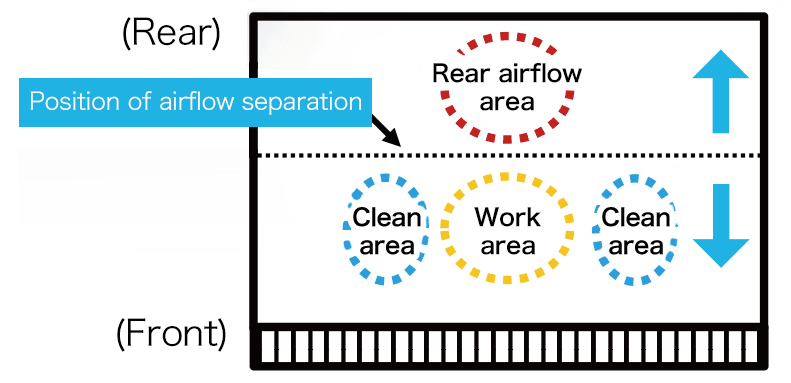

An example of sample placement (2D diagram of a work table)

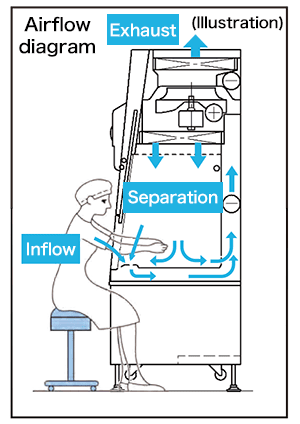

(Pure air is provided to the entire working chamber, including the rear airflow area.)

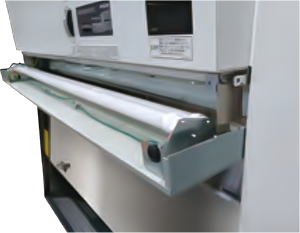

Adopts LED lighting

JIS C 8159-1 linear LED lamps are used.

• JIS C 8159-1 linear LED lamps are used in the product. Users can change these LED lamps themselves. (rated life of LED lamps: 40,000 hours, JIS product).

Accumulated LED lamp lighting time is displayed.

• The product displays the accumulated time the lamps have been on in units of 10 hours when they start to light up.
