Air Compressor SystemsOil-flooded Screw Air Compressor NextⅡ Series 7.5-15kW
Specifications
| Capacity Control | Fixed speed / Variable speed |
|---|---|
| Cooling Method | Air-Cooled |
| Output | 7.5kW-15kW(10HP-20HP) |
| Discharge Pressure | 0.7-0.9MPa (102-131PSI) |

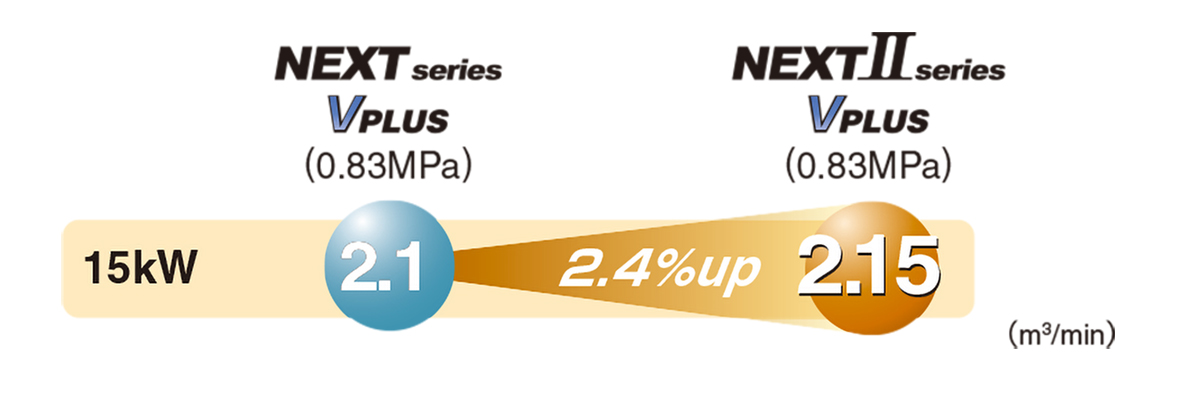

| Discharge Capacity | 1.05-2.15 m3/min |
Models
Variable speed
- OSP-7.5VAN2
- OSP-7.5VARN2
- OSP-11VAN2
- OSP-11VARN2
- OSP-15VAN2
- OSP-15VARN2
Fixed speed
- OSP-7.5M5AN2
- OSP-7.5M5ARN2
- OSP-7.5M6AN2
- OSP-7.5M6ARN2
- OSP-11M5AN2
- OSP-11M5ARN2
- OSP-11M6AN2
- OSP-11M6ARN2
- OSP-15M5AN2
- OSP-15M5ARN2
- OSP-15M6AN2
- OSP-15M6ARN2
Models may differ depending on customers' needs and regions. Please confirm further detailed info on our brochure or contact our nearest Hitachi representatives to find suitable options for you.
Features
Variable speed type
- Simple controller
- Allowable ambient temperature 45℃
- Adjustable discharge air pressure & capacity (PQ wide mode)
- Emergency stop button
- Automated unload stop
Fixed speed type
- IE3 motor (depends on manufacturing place)
- Simple controller
- Allowable ambient temperature 45°C
- Emergency stop button
- Automated unload stop
Hitachi Innovation of Air-End Technology
Long Cycle, Easy Maintenance
Overhaul Cycle — 8 years

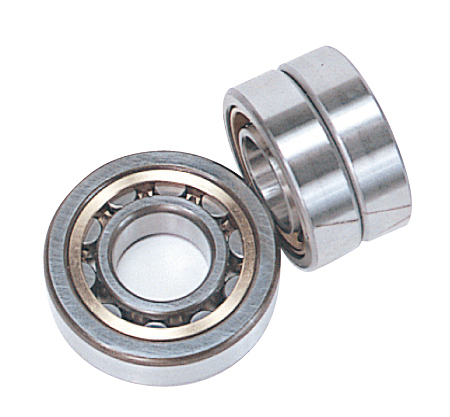

The overhaul cycle of Air-End is every 8 years since the combination of high-performance bearing and high-precision oil filtration system is adopted.
Possible Oil Change Every 2 years
Designed for Hitachi Oil-injected Screw Air Compressor Oil change cycle is every 2 years or 12,000hr, which comes first.*
- Condition：6,000hr or less Operation Time.

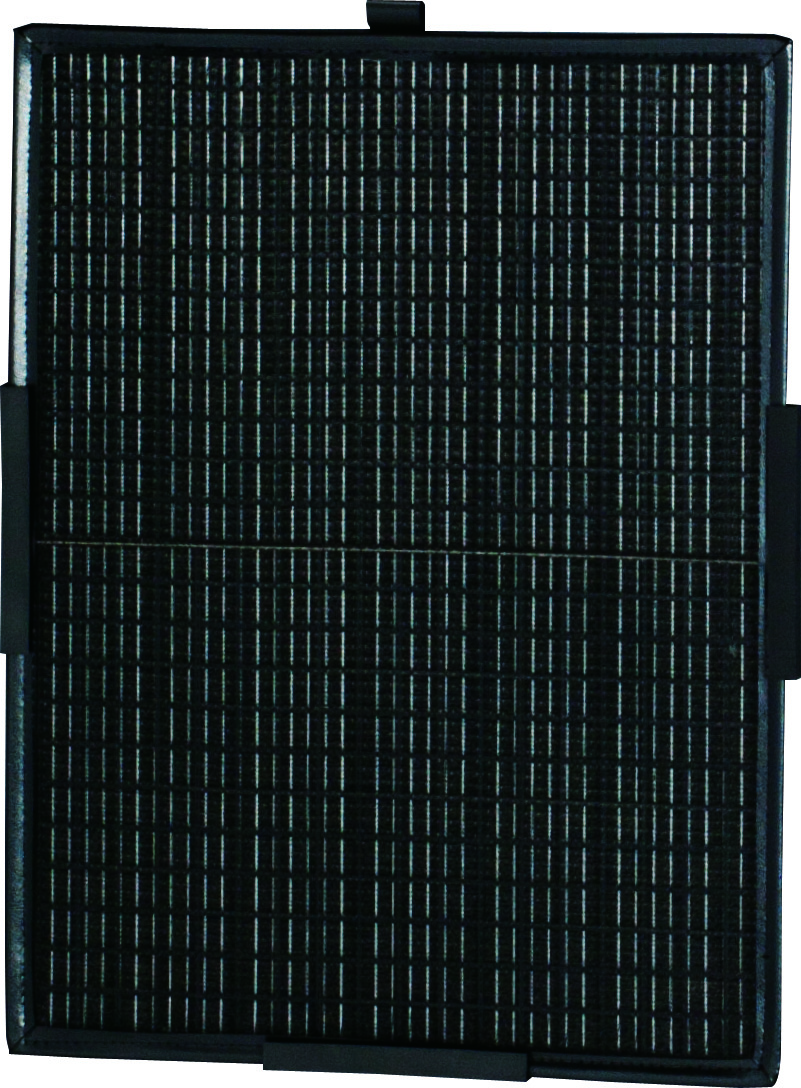

Standard package filter
- Easy maintenance
- Maintenance information is indicated on the touch panel periodically.
