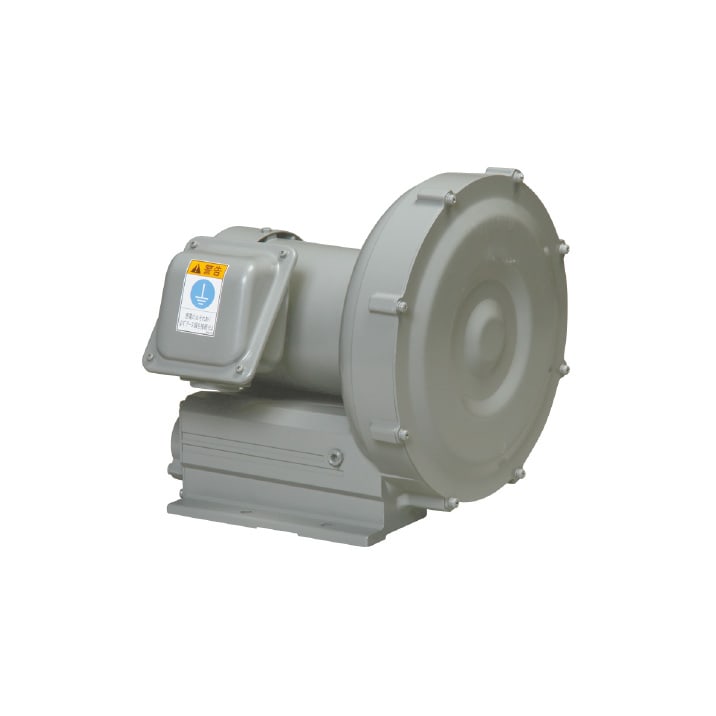

Air Compressor SystemsVortex Blower: E Series(Single Phase)

Type	High-Volume Blower
Motor/Engine Power	100W-11kW
Pressure	2.7kPa-32.5kPa
Flow	0.65m³/min-18.5m³/min

Index

Specifications

Single Phase

Model	Voltage (V)	Poles	Name plate value						Max. capacity (m³/min)		Weight (kg)
			Max.operating
			Pressure (kPa)		Output		Current (A)
			50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
VB-001S-E	100	2	4.6	6.2	0.07	0.1	1.1	1.7	0.65	0.75	6.5
VB-002S-E	100	2	6.0	7.7	0.13	0.19	1.9	2.7	1.1	1.3	8.5
VB-003S-E	100	2	6.7	8.1	0.21	0.31	2.7	3.9	1.5	1.8	9.0
VB-004S-E	100/200	2	8.8	10.8	0.3	0.42	4.8/2.4	6.7/3.3	1.7	2.0	18.0
VB-007S-E	100/200	2	10.8	12.3	0.55	0.72	8.0/4.0	10.4/5.2	2.6	3.1	24.0

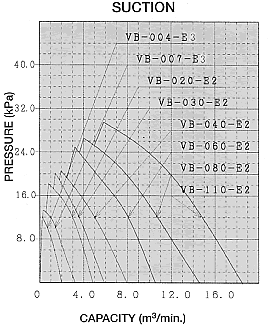

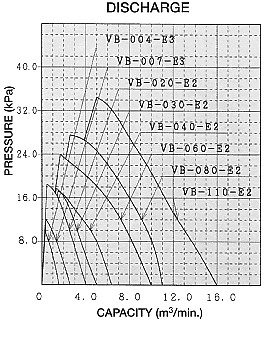

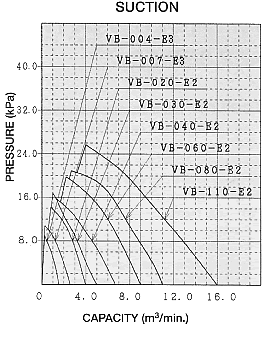

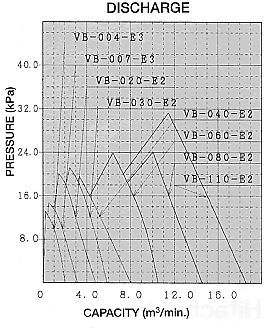

Performance Curve

50Hz

60Hz

Dimensions

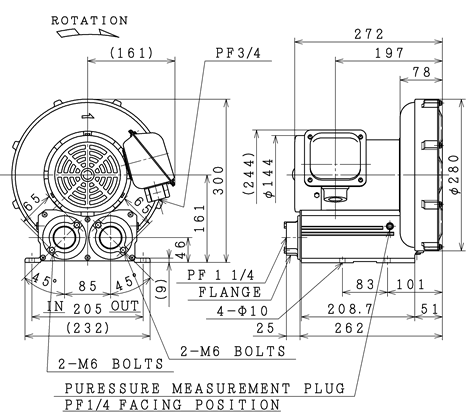

VB-004-E3

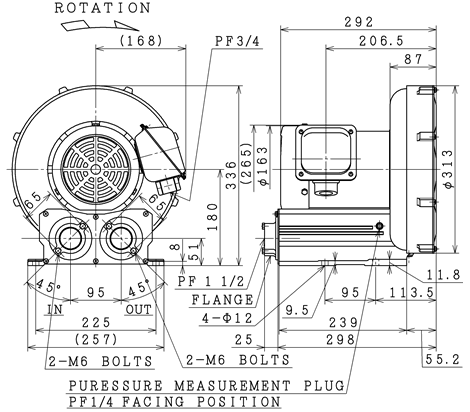

VB-007-E3

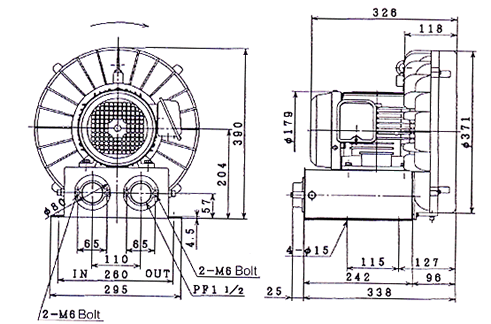

VB-020-E2

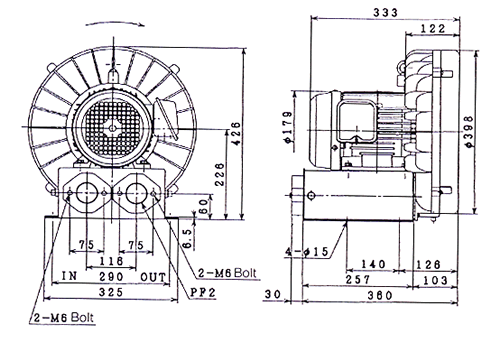

VB-030-E2

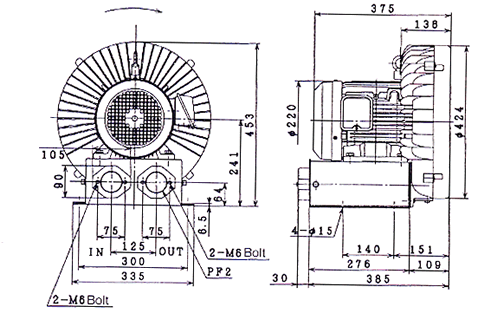

VB-040-E2

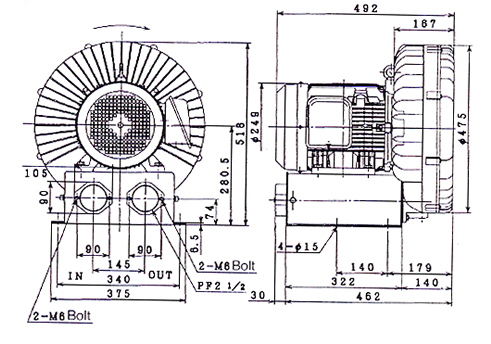

VB-060-E2

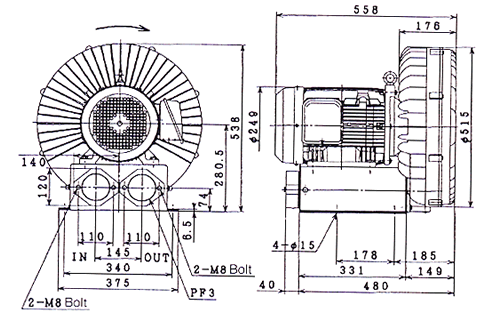

VB-080-E2

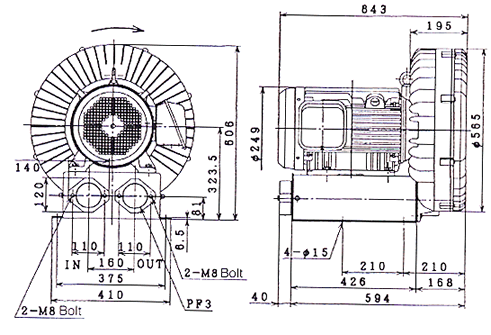

VB-110-E2

Features

Adopt Aluminum Alloy Housing Motor

VB-E Series are decreased 8% in weight
[ Compared with our previous model VB-E Series ]

High Pressure and Low Capacity Working are Available

Adopt double bracket between casing and motor (For VB-060 -110-E2).Then the products expand the performance limitation.
(Increase more 7% of our previous model VB-E Series).

High reliability under high-temperature environment

Adopt the bearings enclosed urea type grease. Then the products have been improved to be stood the work in hight - temperature environment all the more.

Special Version	UL Version
	Outdoor Use Type (Only for Three phase)
	Bearings Waterproof Type (Only for Three phase)
	Explosion - Proof Type
